8750型流量调节器 流量调节系统 burkert

类型描述

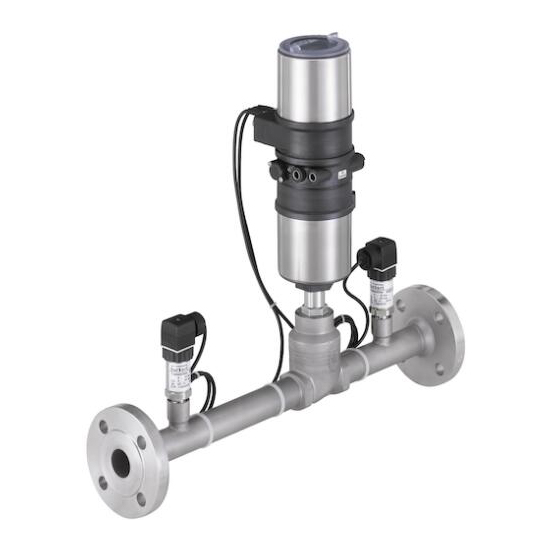

8750 型流量调节器用于根据差压原理确定和调节体积流量。这种调节器由一个带有 8630 型 TopControl Continuous 的 2712 型调节阀、两个 8323 型压力传送器和一个 8400 型温度传送器（可选）构成。总精度为测量范围终值的 ±3%。所有这些组件构成一个结构单元。该传感器集成安装在连接管中。针对不同的调节任务，存在大量的公称通径阀座组合可供使用。必要时，可更换阀门。安装组件时，须注意入口段应符合 EN ISO 5167-1。出口段已经集成安装在系统中。利用两个压力传感器连续测量通过“节流位置”调节阀控制的压力降。该压差和阀门流量特征曲线，是用于通过调节阀确定体积流量的特征参数，也就是过程参数。将这个测得的体积流量与额定值进行比较，并在一个 PID 调节器中进行评估，然后将其作为新的额定值连接到位置调节器上。当前调节阀的实际流量特征曲线逐点按 5% 的步幅保存在 TopControl 的存储器中。用途：用于通过气动方式输送具有流动能力材料（颗粒、谷物、粗粉等）的空气调节器。管道清洗设备中的驱动介质（气体或空气）调节，工业锅炉的燃气与燃烧空气调节

（1）通过集成式系统解决方案实现高经济性

（2）可靠、坚固的系统

（3）自动过程协调

（4）操作简单

（5）可独立运行



Type 8750-Flow regulator for gas flow regulation systems

Type description

The 8750 flow regulator is used to determine and regulate volume flow based on the differential pressure principle. This regulator consists of a Model 2712 regulator with Model 8630 TopControl Continuous, two Model 8323 pressure transmitters, and an Model 8400 temperature transmitter (optional). The total accuracy is ± 3% of the final value of the measurement range. All these components constitute a building block. The sensor is integrated in the connection tube. For different adjustment tasks, there are a large number of nominal bore valve seat combinations available. If necessary, replace the valve. When installing components, care must be taken that the inlet section complies with EN ISO 5167-1. The exit section has been integrated into the system. Two pressure sensors are used to continuously measure the pressure drop controlled by the "throttle position" control valve. The pressure difference and the valve flow characteristic curve are characteristic parameters for determining the volume flow through the regulating valve, that is, process parameters. Compare this measured volume flow to the rated value and evaluate it in a PID controller, and then connect it to the position controller as a new rated value. The actual flow characteristic curve of the current control valve is stored in TopControl's memory in 5% steps. Uses: It is used for air-conditioner to convey materials with flow ability (granule, grain, coarse powder, etc.) by air. Drive medium (gas or air) regulation in pipe cleaning equipment, gas and combustion air regulation in industrial boilers

(1) High economic efficiency through integrated system solutions

(2) Reliable and sturdy system

(3) Automatic process coordination

(4) Simple operation

(5) Can run independently
