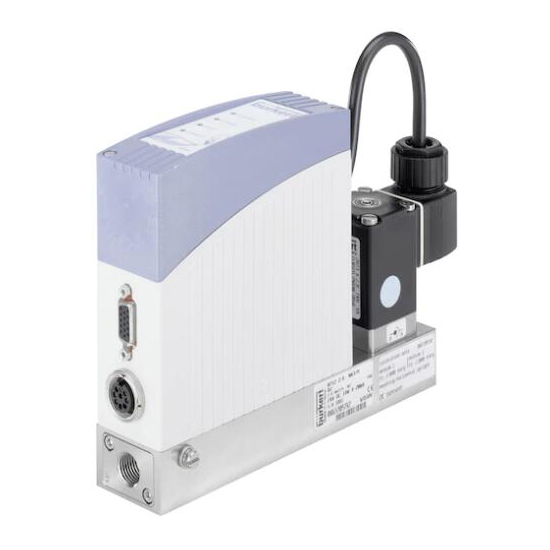

8712型气体质量流量控制器 (MFC) burkert

类型描述

8712 型质量流量控制器 (MFC) 适合在大流量范围内对气体进行质量流量控制。直接位于气流中的热 MEMS 传感器可以实现极高速度的响应。一个直动式 Bürkert 比例阀作为执行元件，确保了良好的响应灵敏度。集成 PI 控制器，令 MFC 具备卓越的控制特性。8712 型设备可以针对两种不同的气体进行校准，用户可以在两者之间进行切换。作为电气接口，既提供模拟标准信号，也提供现场总线。8712 型质量流量控制器适合多样化应用，例如燃烧器控制、热处理、材料涂层、生物反应堆、燃料电池技术或者试验台。凭借良好的 IP 防护等级，使得该款质量流量控制器尤其适合恶劣环境中的应用。



（1）标称流量范围：0.010 lN/min 至 80 lN/min

（2）测量精度和重复性高

（3）调控速度特别快

（4）防护等级 IP65

（5）选配：现场总线接口



Type 8712-Gas Mass Flow Controller (MFC)

Type description

The Model 8712 Mass Flow Controller (MFC) is suitable for mass flow control of gases over a wide flow range. Thermal MEMS sensors located directly in the air stream enable extremely high-speed response. A direct-acting Bürkert proportional valve is used as an actuator to ensure good response sensitivity. The integrated PI controller gives the MFC excellent control characteristics. The Model 8712 can be calibrated for two different gases, and the user can switch between the two. As an electrical interface, both analog standard signals and fieldbus are provided. The Model 8712 mass flow controller is suitable for a variety of applications such as burner control, heat treatment, material coating, bioreactors, fuel cell technology, or test benches. With good IP protection, this mass flow controller is especially suitable for applications in harsh environments.



(1) Nominal flow range: 0.010 lN / min to 80 lN / min

(2) High measurement accuracy and repeatability

(3) Regulation speed is particularly fast

(4) Protection grade IP65

(5) Optional: Fieldbus interface
