0117型带有隔膜的二位二通阀门 burket 电磁阀

类型描述

型号 117 是一种直动式升降式衔铁电磁阀，带有相应的塑料外壳和一个具有 PTFE 涂层的隔膜。此设备可无需电流借助弹簧力关闭。接通时，磁芯受到吸引，由此克服弹簧力。阀门特别适合流量很小的、液态或气态的侵蚀性介质。

（1）紧凑型设计

（2）低电功率消耗

（3）开关时间短

（4）带有隔膜的升降式衔铁阀

（5）适合侵蚀性介质

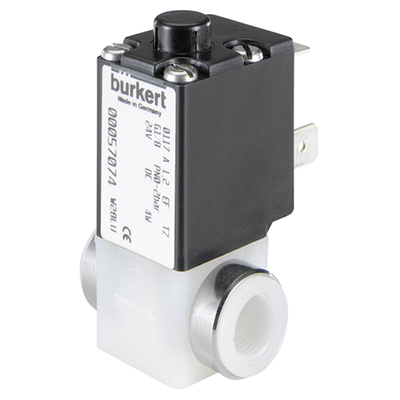

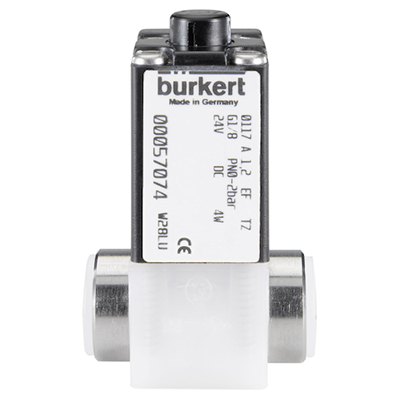

Type 0117 - 2/2 way Plunger-Solenoid Valve with separating diaphragm

Type Description

Type 117 is a normally-closed direct-actingplunger-type solenoid valve with PTFE-coated diaphragm. The diaphragm isolates the fluidfrom the solenoid system. When deenergized (in circuit function A)the valve is closed by spring action. When energized, the solenoid armature is drawnin 2/2-Way, G 1/8, UNF 1/4-28 FluidControl Systems against a spring to open the valve. The solenoid epoxy encapsulation efficiently dissipates the heat generated by the coil.

（1）Compact design

（2）Low electrical power consumption

（3）Short response times

（4）Hermetically sealing isolating diaphragm

（5）Non-metallic valve internals
