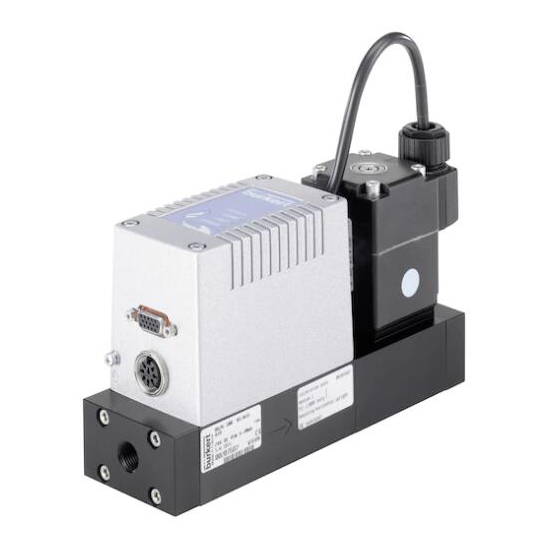

8626型气体质量流量控制器 (MFC) burkert

类型 8626 - 气体质量流量控制器 (MFC)

类型描述

8626 型质量流量控制器 (MFC) 适用于大量气体的质量流量调控。直接位于气流中的 Inline 热传感器能够达到非常快的响应速度。一个直动式 Bürkert 比例阀作为执行元件，确保了良好的响应灵敏度。集成 PI 控制器，令 MFC 具备卓越的控制特性。8626 型设备可以针对两种不同的气体进行校准，用户可以在两者之间进行切换。作为电气接口，既提供模拟标准信号，也提供现场总线。由于耐抗污染且 IP 防护等级高，因此，8626 型质量流量控制器特别适合严酷环境中的应用。 质量流量控制器应用广泛，包括燃烧器控制、热处理、冶金、食品行业、环境技术、材料涂层、燃料电池技术和试验台等。



（1）标称流量范围从 20 lN/min 至最高 1500 lN/min

（2）测量精度和重复性高

（3）调控速度快

（4）防护等级 IP65

（5）选配：现场总线接口



类型 8626 - Mass Flow Controller for Gases (MFC)

类型描述

The mass flow controller (MFC) type 8626 is suited for regulating the mass flow of high gas flows. The thermal inline sensor is located directly in the gas stream and therefore reaches very fast response times. A direct-acting proportional valve from Bürkert guarantees a high sensitivity. The integrated PI controller ensures outstanding control characteristics of the MFC. Type 8626 can optionally be calibrated for two different gases; the user can switch between these two gases. As electrical interfaces both, analog standard signals and fieldbuses are available. The mass flow controller type 8626 is especially designed for use in harsh environments due to a low sensitivity to contamination and the high protection class. The MFC fits for various applications, like e.g. burner controls, heat treatment, metallurgy, food and beverage industry, environmental technology, material coatings, fuel cell technology or test benches.

（1）Nominal flow ranges from 20 lN/min up to 1500 lN/min

（2）High accuracy and repeatability

（3）Short settling times

（4）Protection class IP65

（5）Optional: Fieldbus interface
