6227型伺服控制的二位二通隔膜阀块 burkert

类型描述

无流量时，带有伺服隔膜的先导式电磁阀会关闭。在该状态下，会在隔膜上方形成一个压力，该压力将阀门保持关闭。接通时，通过伺服隔膜将空间泄压，介质压力会将伺服隔膜顶起，阀门随之打开。模块化、可串接的阀门系统可随意组合成具有两种不同公称通径的分配器或集流器，这些组合结构具有不同的接口类型，最多可组合 12 个阀门。通过转动阀座，可以将各个阀门从集流器功能简单地转换或改装到分配器功能。在所有的阀门位置上，均可装配相应的补充模块（例如温度传感器）以替代阀门。

重叠的线圈系统 AC10

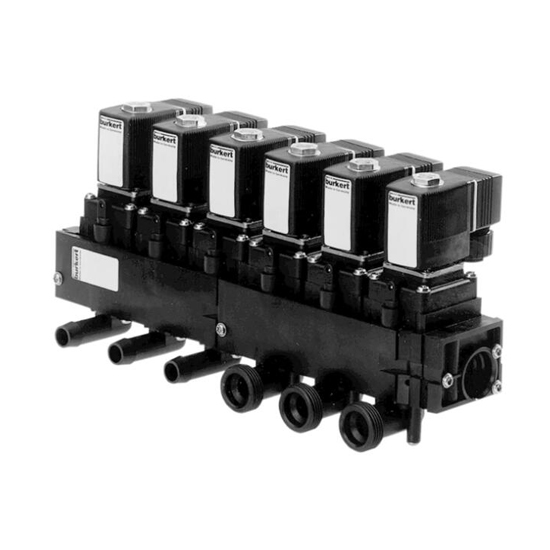

Type 6227 - Servo assisted 2/2 way Modular Water Valve System

Type Description

The servo-assisted solenoid valve with servo diaphragm is normally closed (NC). In this condition, pressure builds up above the diaphragm - the valve holds tight. When energized, the space above the servo diaphragm is pressure relieved and lifted up by the medium - the valve opens. The modular extendable valve system can be built up in all possible combinations with up to 12 valves each as distributor or collector in two sizes with different port connection modules. The valve can be put together in collecting function or distributing function by easily twisting the valve insert. Any combination of functions in one block is possible. Additional functions such as temperature indication or flow measurement can be added by integrating a corresponding sensor directly into the valve block. In order to be as flexible as possible, a variety of port connections are available as standard. The inner thread port connections are at the bottom, pointing down while the outer thread port connections and the plug-on connection for hoses are pointing to the side. The block material is Polyamide glassfiber reinforced. The advantages are: Low weight and a certain chemical resistance.

Push-over solenoid system AC10

Modular valve 2/3/4-fold, hose connection

Body in brass DN1 …DN13
