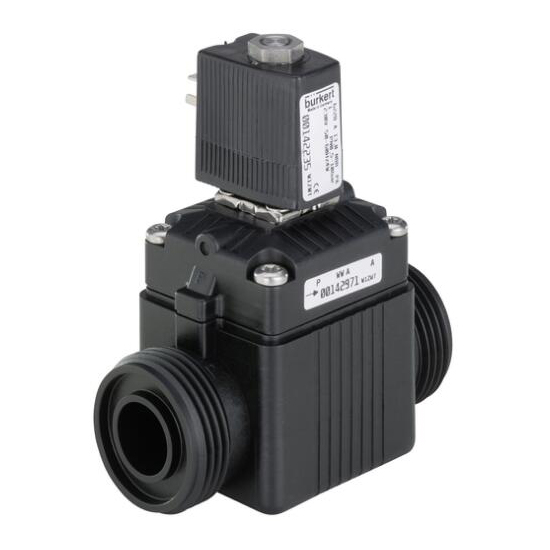

6228型伺服控制的二位二通隔膜阀 burkert

类型描述

型号 6228 是一种二位二通的先导式电磁阀，带有伺服隔膜。这种结构特别适合中性介质。在无流量的状态下，电磁阀关闭。通过伺服隔膜可以形成一个压力，该压力会下压隔膜，从而将阀门保持关闭。接通时，通过先导式阀对伺服隔膜上方的空间进行泄压。这样一来，伺服隔膜就会被介质压力顶起，主阀随之打开。为了完全打开和关闭阀门，所需的差压不能低于 0.5 bar。阀门内部件的特别构造和几何形状，使得阀门在很小的压力峰值时，即可发挥平缓的关闭功能。阀门可径向拆卸，操作非常简单。

重叠的线圈系统



Type 6228 - Diaphragm valve 2/2 way servo-assisted

Type Description

The Type 6228 is a servo-assisted 2/2-way solenoid valve with servo-diaphragm. It is particularly suited for neutral media. Without electrical power, this solenoid valve is closed. Pressure builds up through the servo diaphragm, which pushes the latter downwards and thereby keeps the valve closed. On switching, the space above the servo-diaphragm will be relieved via the pilot valve. As a result, the pressure of the medium lifts the servo-diaphragm, and the main valve opens. A minimum differential pressure of 0.5 bar is required for complete opening and closing. The special design and geometry of the internalparts of the valve produce a soft closing function with very low pressure peaks only. It is very simple to extend the valve radially.

（1）Push-over solenoid system

（2）Energy-saving AC07 coil, max. DN 13

（3）Body in plastic
