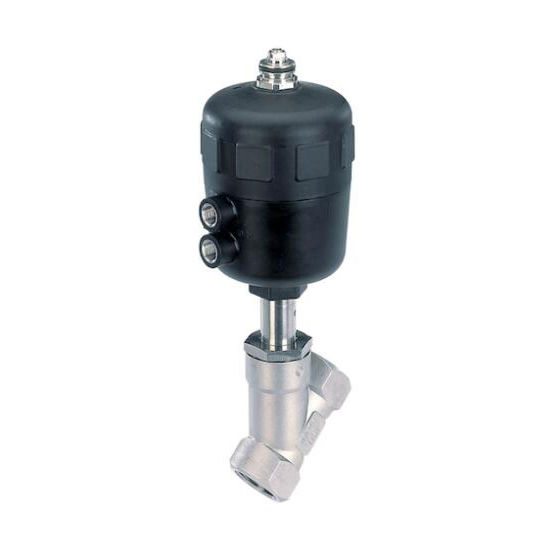

2702型气动操作的二通斜座调节阀 burkert

类型描述

2702 型控制阀由带耐用气动活塞执行机构的 316L 角座阀体组成。抛物面阀锥比传统控制阀可提供多达 35％ 的流量。它可以采用不锈钢外罩不锈钢的方式制成，也可以采用耐用的 PTFE 密封件以实现紧密密封。2702 型可以采用位置调节器 TopControl、持续型 8692/8693/8694、SideControl 型 8635 或 SideControl 8792/93 遥控型式进行控制。带气动执行机构的 TopControl 作为一个完整的控制阀，形成一个光学和功能单元。该系统设计用于在优选高流速的应用中实现可靠、精确的控制。

（1）出色的调节质量结合高过流能力

（2）高使用寿命

（3）坚固的通用执行机构，具有模块化配件系列

（4）带有连接套头或焊接接头的不锈钢外壳

类型 2702 - Pneumatically operated 2 way Angle Seat Control Valve

类型描述

The 2702 Control Valve consists of an 316L angle seat body with a rugged pneumatic piston actuator. The parabolic trim results in a fl ow characteristic approximately 35% larger than conventional control valves. It is available in either stainless steel on stainless steel or with a durable PTFE seal for tight shut-off. Type 2702 can be actuated by the Continuous TopControl Type 8692/8693/8694 or SideControl Type 8635 and 8792/93. TopControl/Side-Control thus forms a mechanical and functional unit with the pneumatic actuator as a complete control valve system. This system has been engineered for reliable accurate control in applications where high fl ow rate is an advantage.

（1）Excellent control characteristics and high flow rates

（2）Long service life

（3）Robust actuators with modular accessory program

（4）Stainless steel housing with thread and weld end connections
