2712型气动操作的二通直座调节阀 burkert

类型描述

系统 2712 能够在优先重视调节精度的使用情况中进行准确调节。2712 由一个全不锈钢的阀体与 Bürkert Classic 伺服驱动装置组合而成，每个直座阀体均可装配三到五个不同的阀座尺寸。这种抛物线状阀座，能够根据通过量的变化得出一个准确、可重复的特征曲线。接口密封用阀锥可提供不锈钢型或配有耐久 PTFE 密封件的类型。在通过 SideControl 8635、Side-Controls 8792/93 远程版或 TopControl 8694/8692/8693/8630 进行操作时，它构成了一种独一无二的调节器系统，既可作为简单、准确的定位器运行，或者也可作为自动调整型 PID 过程调节器运行来控制流量、温度或压力。

（1）出色的调节质量，带有紧凑型外壳

（2）通过可更换的阀座实现了较高的使用寿命和多变性

（3）坚固的通用驱动装置，具有模块化配件系列

（4）带有法兰接头、连接套头或焊接接头的不锈钢外壳

（5）高运行安全性

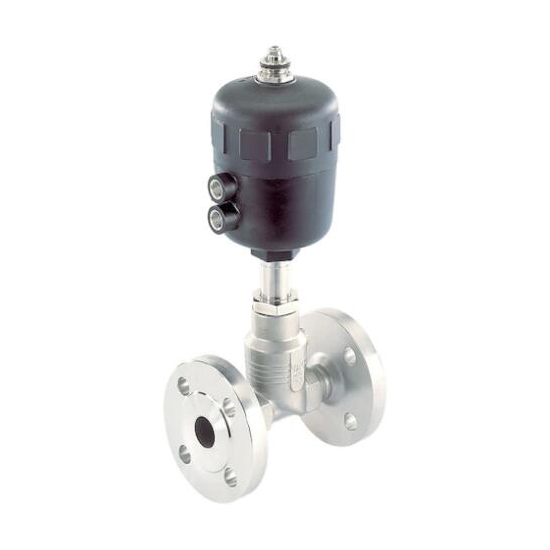

Type 2712 - Pneumatically operated 2-way Globe Control Valve

Type Description

The 2712 system has been specifically engineered for reliable control in applications where control accuracy is paramount. The 2712 is made from an all stainless steel valve body combined with Burkert’s classic pneumatic actuator. Each globe valve body can be fitted with three to five sizes of trim sets. These parabolic trims provide a reliable and repeatable characteristic to vary the flow. The control cones are available in either stainless steel or with a durable PTFE seal for tight shut-off. When actuated by the 8635 SideControl, SideControls 8792/93 Remote versionsor the 8694/8692/8693/ 8630 TopControl it forms a unique control valve system which can be operated as either a simple accurate positioner or an autotune PID process controllerfor flow, temperature or pressure.

（1）Excellent control characteristics with compact housing

（2）High life ycle and variability by removable trim kits

（3）Robust actuator with modular accessory program

（4）Stainless steel housing with flange, thread or weld end connection

（5）High operative safety
