2672型气动旋转驱动装置的二位二通截止阀 burkert

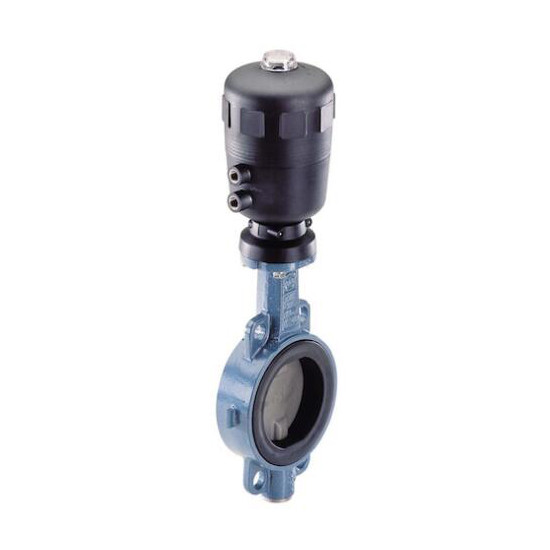

Type 2672 - 2/2 way Butterfly Valve, Pneumatically Operated

Type Description

The control valve type 2672/8630 consists of a 2-way butterfly valve type 2672 and an electro-pneumatic position controller including superimposed process controller type 8630 (TopControl Continuous) with analogue feedback card. The butterfly valve housing is made of cast iron and the flap is made of stainless steel. The connection between the flap and the actuator follows a standard interface (flange connection). The rotary movement in the actuator is achieved by a linear piston with a steep-threaded spindle. The rotary actuator moves the butterfly valve by max. 90°. The compact electropneumatically actuated control valve can be used for a wide range of applications and media. NOTE: The use of these control valves is only useful in a process control loop; The valve is not suitable for direct position control.

Compact design

High flow rate
