2658型气动旋转驱动装置的二位二通球阀 burkert

类型描述

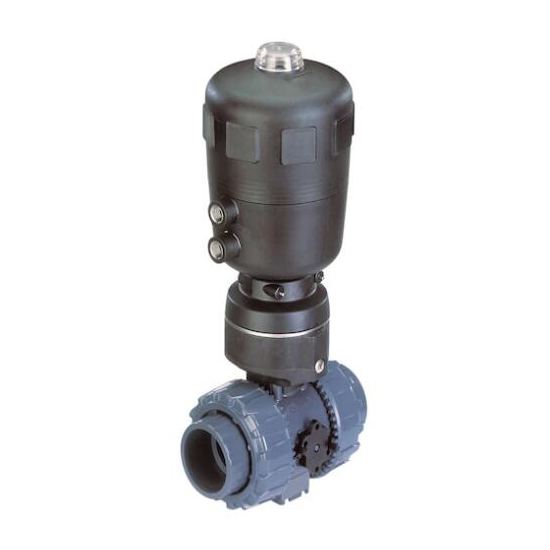

2658 型整套装置由一个气动旋转驱动装置和一个塑料制球阀外壳构成。通过一个标准端口连接驱动装置与球阀（法兰连接）。通过一个线性活塞和粗牙螺纹联轴器，在驱动装置中生成旋转运动。旋转驱动装置会将球阀转动 90°，由此打开或关闭管道截面。紧凑型的气动球阀可用于多种用途和介质。气动旋转驱动装置也可被应用于其他使用目的。特征：球阀装配有所谓的 DualBlock? 技术。该系统用于固定锁紧螺母。能够防止其在运行期间松开。

可径向拆卸的外壳

采用紧凑型设计的气动驱动装置

光学位置指示器

按 NAMUR 的控制阀接口

通过 Dual Block? 技术固定锁紧螺母

Type 2658 - 2/2 way Ball Valve with Pneumatic Rotary Actuator

Type Description

The complete unit of the Type 2658 consistsof a pneumatic rotary actuator and a ball valve body from plastic. The connection between the ball valve and the actuator is made via a standard interface (flange connection). The rotary movement in the actuator is produced by a linear piston with angled thread coupling. The rotary actuator moves the ball valve through 90°and thereby opens or closes the port crosssection.The compact pneumatically-operatedball valve can be used for a wide range of applications and media. The pneumatic rotaryactuator can also be used for other purposes.Special feature: The ball valves are equipped with the so-called Dual Block? Technology. This system serves as a safety device for the union nuts. It preventsthese separating during operation.

Radially expandable body

Pneumatic actuator in compact model

Optical position indicator

Control valve connection acc. to NAMUR

Safe blocked union nuts with Dual Block? Technology
