2644型电动驱动装置的二位二通球阀 burkert

类型描述

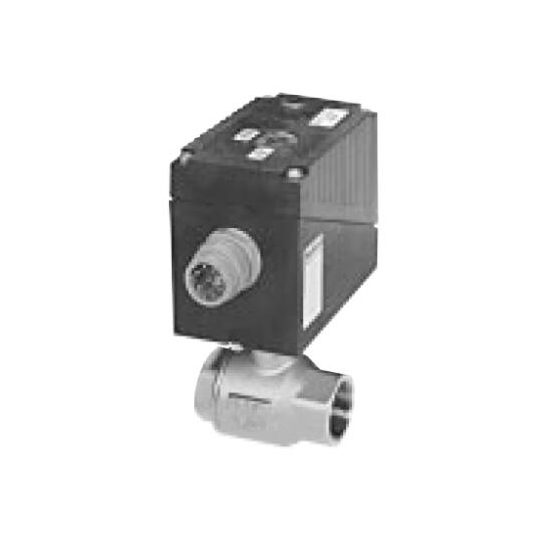

电动驱动的球阀 2664，由一个黄铜或不锈钢制外壳和一个带有手动操作装置及光学位置指示器的电机驱动装置构成。驱动装置经由符合 DIN ISO 5211 的机械接口 F03 与球阀相连。球阀根据二位运行原理工作。借助于凸轮和 2 个微型开关进行电压转换。电机驱动装置会将球阀转动 90°，由此打开或关闭管道截面。在带有电位计的结构中，可以驶向规定的中间位置。微型开关或电位计也可应用于电气位置反馈信号。可提供由两部分或三部分构成的阀体。在由三部分构成的结构中，可以将球阀的中间部件简单地从设备中拆除。2664 型球阀适合多种使用中性和侵蚀性介质的情况。

Type 2664 - 2/2-way ball valve with electric drive

Type description

The electrically driven ball valve 2664 consists of a brass or stainless steel housing and a motor drive with manual operation and an optical position indicator. The drive unit is connected to the ball valve via a mechanical interface F03 according to DIN ISO 5211. The ball valve works according to the two-position operating principle. Voltage conversion is performed by means of a cam and 2 micro switches. The motor drive rotates the ball valve by 90°, thereby opening or closing the pipe section. In a structure with a potentiometer, it is possible to drive to a defined intermediate position. Microswitches or potentiometers can also be applied to electrical position feedback signals. A valve body composed of two or three parts can be provided. In a three-part construction, the intermediate part of the ball valve can be simply removed from the device. The Model 2664 Ball Valve is suitable for a wide range of applications using neutral and aggressive media.
