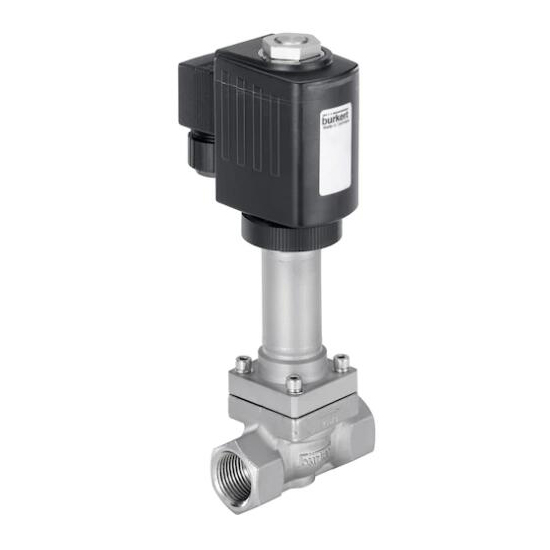

2610型直动式两位两通柱塞电磁阀 burkert

类型描述

2610为直动式、介质隔离的柱塞电磁阀。线圈和阀体之间通过不锈钢波纹管隔热和密封隔离，使该阀适用于极高的介质温度和腐蚀性介质。电磁线圈采用耐化学腐蚀的环氧树脂封装。因此，该阀尤其适用于苛刻的介质。标准供货的电缆插头带“kick and drop”电子线路，使该阀能够打开，并在打开之后将电流减小到保持功率。与 DIN EN 17301-803 A 型电缆插头配套，该阀的安全防护等级为 IP65，不锈钢阀体式 NEMA 4X。

（1）直动式介质隔离电磁阀，最大通径 DN 12

（2）焊接金属波纹管系统 (316Ti)

（3）高质量 PTFE 阀座密封

（4）介质温度 -200 °C …+180 °C

（5）节能的 "Kick and Drop“ 电子装置

Type 2610 - Plunger valve 2/2 way direct-acting

Type Description

The 2610 valve is a direct-acting, media-separated plunger valve. Thermal and hermetic isolation of coil and housing by means of a stainless steel bellows enables both extreme media temperatures and aggressive media. The coils are moulded with chemically resistant epoxy. Therefore, the valve is especially well suited for applications with critical media. The cable plug with 'Kick and Drop' electronics included in the scope of supply supports the valve opening process and reduces current to the holding power after opening. In combination with a plug in accordance with DIN EN 17301-803 Form A, the valves satisfy protection class IP65 – in combination with the stainless steel housing NEMA 4X.

（1）Direct-acting, media-separated valve with diameter of up to DN 12

（2）Welded metal bellows system (316Ti)

（3）High-quality PTFE seat seal

（4）Media temperature from -200 °C to +180 °C

（5）Energy-saving 'Kick and Drop' electronics
