251型插头形状 A 电磁阀配件 burkert

类型描述

ASI 装置插座由一个带有集成式从电子设备的聚酰胺外壳和一个按 DIN EN175301-803 形状 A 的插头图构成。该插座利用 AS 端口将二进制负载与相应的插头标记相连，例如阀门。除此之外，在顶盖带有 M12 插槽的结构类型中，还可以接收反馈信号。利用 M12 总线插头可以缩短安装时间，进行简单的电气连接。AS 端口装置插座的优点是：结构坚固，可借助于圆电缆支线根据 AS 端口说明书进行快速安装。LED 状态指示器简化了调试和错误查找过程。总线馈给：将信号和供应能量传输到一个共用线路上。外部供应：将信号和供应能量传输到单独的线路上（例如急停装置或功率消耗较高的负载）。

防护级 IP65

带有集成式 AS 端口线路

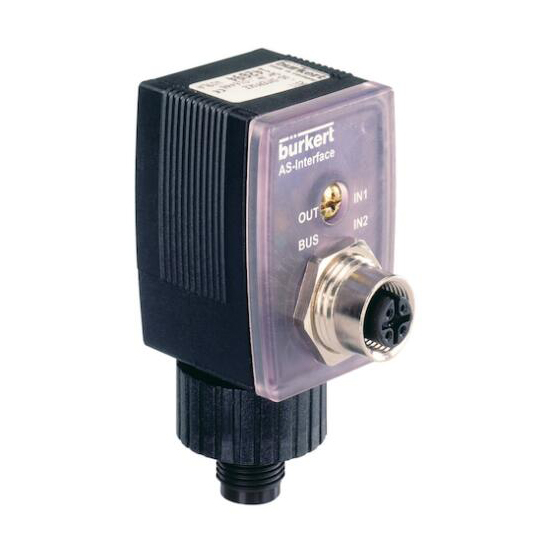

Type 2511 - Cable Plug Form A

Type Description

The ASI cable plug consist of a polyamidebody with an integrated slave electronics and aconnector configuration according to DIN EN175301-803 Form A. These plugs connect binary elements with the corresponding tag connectors, e.g., valves, to the AS-interface. Inaddition, feedback signals can be received by the variants with the M12 socket in the cover. With the M12 connectors, the installationtimes are quick and the electrical connectionis simple. The advantages with ASI cable plug: Robust and quick installation according to the AS-interface specification. LED status displays facilitate commissioning and fault finding. Bus supply: Transmission of signals and supply voltage on a common line. External supply: transmission of signals and supply voltage on separate lines (such as Emergency Stop or elements with high current consumption).

Protection class IP 65

With integrated AS-Interface connection

Simple commissioning and error identification with LED status display
