1150型多信道过程和程序调节器 burkert

类型描述

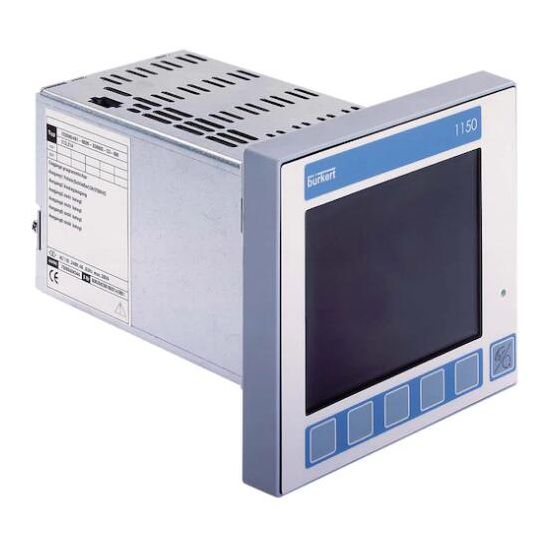

型号 1150 是一种过程和程序调节器，带有最多四个调节器或程序信道。装置的规格为 144 mm x 130 mm，适合尺寸为 92 mm x 92 的 DIN 控制板凹口和 170 mm 的安装深度。使用一个 27 色 5“ 彩色显示器作为指示器。操作界面可自由设计，根据个人喜好进行调整。在两个可自由配置的显示屏界面中，可根据用户需要放置文本、工艺值、背景图和图标。最多存在四个模拟输入端和六个二进制输入端以及六个用于控制输出端或模拟输出端的插槽。为了通过一台电脑进行舒适配置，还可提供一个安装程序。标准测量值传感器的线性化已保存；可以对四个符合客户要求的线性化表格进行编程。借助于数学和逻辑模块，可以对装置进行调整，使其适合各种不同的调节和控制任务。通过两个串口 RS422/485 或 PROFIBUS-DP，可以将装置集成安装在一个数据联合中。用户可通过简单的方式加装组件（参见组块结构）。通过锁螺丝对插式端子在背面进行电气连接。

色彩鲜明的 27 色 5” 彩色显示器

可自由配置的显示屏界面

最多 4 个调节器信道

对包含 1000 个节段的 50 个程序进行动态管理

Type 1150 - Multi-channel process and program controller

Type Description

The Type 1150 is a process and program controller with up to 4 controller or program channels. The instrument is built to the format 144 mm x 130 mm for a standard 92 mm x 92 mm panel cut-out and a mounting depth of 170 mm. The display is a 5” color graphics display (27 colours). The layout of the screen templates can be individually adapted and adjusted. Two freely confi gurable screen templates make it possible to customize the placing of texts, process values, background pictures and icons. A maximum of 4 analog inputs and 6 logic inputs are available, as well as six expansion slots for switched or analog outputs. A setup program is available for comfortable configuration from a PC. Linearizations for the usual transducers are stored within the instrument, four customerspecific linearization tables can be programmed. A math and logic module can be used to adapt the instrument to a very wide range of control tasks. Two serial interfaces, RS422/485 or Profi bus-DP, can be used to integrate the instrument into a data network. Modules can be retrofi tted quite simply by the user (see block structure). The electrical connection is made at the rear of the instrument, via plug-in screw terminals.

Brilliant 5” colour graphics display, with 27 colours

Freely configurable screen templates

Up to 4 controller channels

50 programmes, with 1,000 segments under dynamic management
