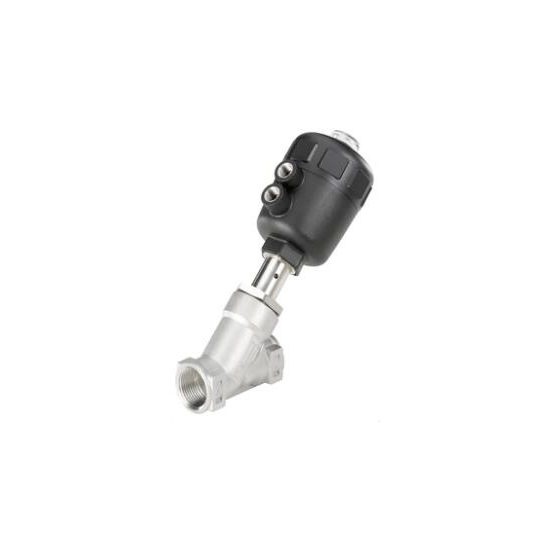

2000型气动操作的二位二通角座阀 burkert

类型描述

从外部控制的斜座阀由一个气动的活塞驱动装置和一个二通阀体构成。根据环境温度的不同，可以购买两种不同材料（PA 和 PPS）的驱动装置。经过验证的、能够进行自动调整的主轴密封件确保了高密封性。利于流动的二位二通阀体由红铜或精密铸造的不锈钢构成，能够实现高流量值。在此类免维护的坚固阀门上，可以加装各种用于显示位置、限制冲程或进行手动应急操作的配件。

不锈钢或红铜外壳，带有套头、夹紧式或焊接式接头

1)高流量

2)高使用寿命

Type 2000 - Pneumatically operated 2/2 way angle seat valve CLASSIC

Type Description

The externally piloted angle seat valve is operated with a single or double–acting piston actuator. The actuator is available in two different materials, depending on the ambient temperature. High flow rates are attained with the virtually straight flow path. The reliable self–adjusting packing gland provides high sealing integrity. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.

Stainless steel or gunmetal housing with sleeve, clamped or welded connection

Long service life

High flow rate

Robust actuators with modular accessory program
