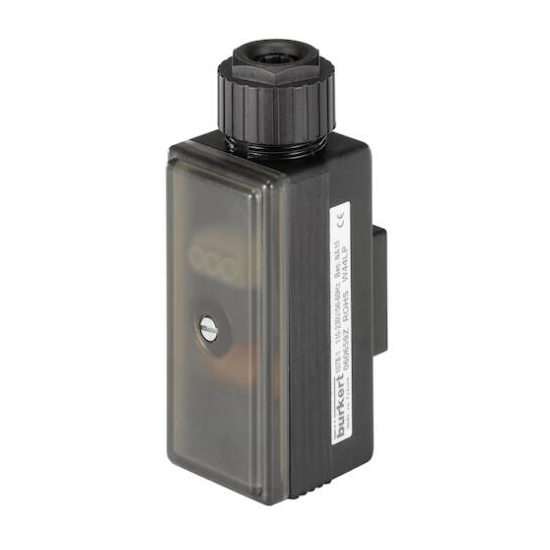

1078型适合电磁阀的时间控制装置 burkert

类型描述

型号 1078-1 工作时以一个微处理器为基础，可用来控制电磁阀的开关时间。可以设置的开关时间周期有四种。控制装置利用一个符合 DIN EN 175301-803（以前是 DIN 43650）的 A 型设备插座插在电磁阀的插接位置。程序设置和开关时间可借助 DIP 开关和电位计完成。现有电源电压和开关状态由 2 个 LED 显示。

（1）功能可直接调节

（2）4 种不同的开关功能

Type 1078 - Timer Unit

Type Description

The Type 1078–1 works on the basis of amicro–processor, and is used for the control of the cycle times of solenoid valves. Up to four different switching time cycles can be set up. The controller is plugged onto the tag connector of the solenoid valve using the integrated instrument socket according to DIN 43650 Form A. The setting of the program and the cycle times is carried out using DIP switches and potentiometers. The availability of mains voltage and the switch status is shown on 2 LEDs.

（1）Functions can be directly set

（2）4 different switching functions

（3）Plug shape A
