0744型直动式二位三通升降式衔铁阀 burkert

重叠的线圈系统

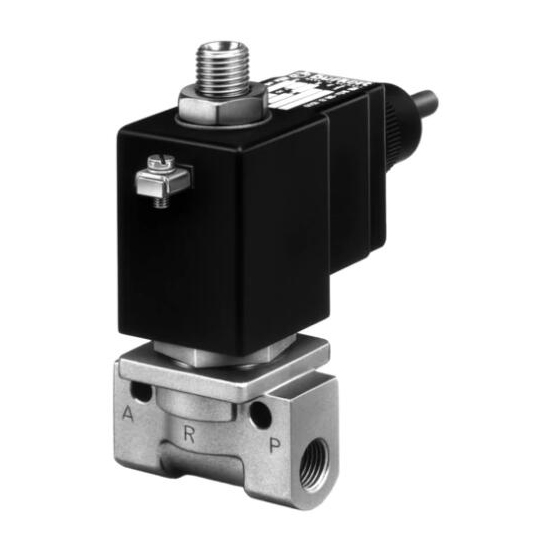

Type 0744 - Direct-acting 3/2 way lifting armature valve

Type Description

Type 744 is a direct-acting plunger type solenoid valve, normally closed by spring action (circuit function C), or normally open by spring action (circuit function D). When energized, the solenoid armature is drawn against a spring.The flow path through the valve is dependent up on the chosen circuit function.G 1/4 Single-phase bridge and varistor are housed in a flameproof enclosure to protection classification “d”. Coil and terminal box correspond to protection classification “e”, i.e. increased safety. The solenoid epoxy encapsulation efficiently dissipates the heat generated by the coil.

Explosion-protected block-screwed coil

Push-over solenoid system

Body in brass
