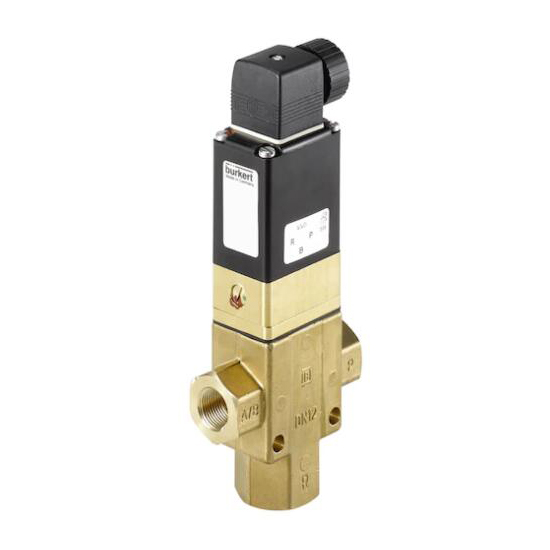

0344型伺服辅助式两位三通活塞电磁阀 burkert

类型描述

0344 为伺服辅助式两位三通活塞电磁阀。要完全打开或关闭阀门，需要一个最小压差。其先导阀为免维护、介质隔离的两位三通转动衔铁电磁阀（0331型）。该先导阀的常开和常闭功能可方便地进行转换：只需将其在主阀座上进行旋转即可。电磁线圈采用耐化学腐蚀的环氧树脂封装。0344型配备了手动开关，可用于调试和测试。如有节能要求，所有线圈都可提供节电式，或脉冲式。开关状态可以通过位置反馈以二进制或 NAMUR 信号显示。与 DIN EN 17301-803 A 型电缆插头配套，该阀的安全防护等级为 IP65/67。

（1）伺服辅助式活塞电磁阀，最大通径 DN 40

（2）采用转动衔铁技术，提高运行安全性

（3）适合于真空应用

（4）使用方便的手动开关

（5）节能脉冲式

Type 0344 - Piston valve 3/2 way servo-assisted

Type Description

The 0344 valve is a servo-assisted 3/2-way piston valve. A minimum differential pressure is required for the valve to function. A maintenance-free, media-separated 3/2-way pivoted armature valve (type 0331) is used as a pilot valve. The pivoted armature valve can be easily converted from NC to NO functioning principle by rotating it on the main seat. The solenoid coils are moulded with a chemically resistant epoxy. The 0344 is equipped with manual override for commissioning and testing. For reduced energy requirements all coils can be delivered with electronic power reduction or as an impulse version.. The switching status can be indicated with position feedback as a binary or NAMUR signal. In combination with a plug in accordance with DIN EN 17301-803 Form A, the valves satisfy protection class IP65/67.

（1）Servo-assisted piston valve with diameter of up to DN 40

（2）Increased operational safety with pivoted armature technology

（3）Suitable for vacuum applications

（4）Service-friendly manual override

（5）Energy-saving impulse versions
