8201型卫生型PH测量仪 burkert

类型描述

8201型PH测量系统适用于PH值在0和12之间的液体PH绝对值测量，介质最高温度140°C，过程最大压力为6 bar。卫生的设计和无玻璃的构造是使这款产品尤其适用于卫生型过程，例如食品和活性物质生产等过程中液体介质的PH值的测量（包括粘稠或含有固体颗粒的情况）。PH电极表面平整，能够有效防止介质粘附，而且容易在线清洗。基于耐高温耐化学腐蚀等设计，即使在CIP过程中，电极仍可以保持正常工作状态，这样就可以节省的配件费用。

（1）特殊设计无玻璃探头用于连接到8619并测量PH值

（2）无菌设计，可用于CIP，在线消毒

（3）坚固耐用不易损坏

（4）使用寿命长，校准间隔时间长

（5）尤其适用于食品和饮料加工

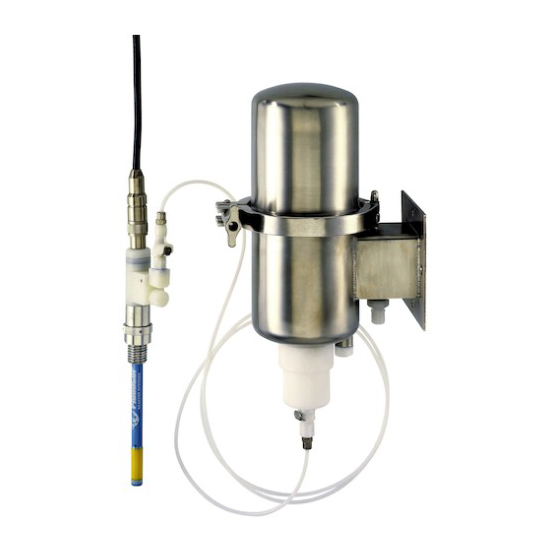

Type 8201 - pH measuring system for hygienic applications

Type Description

The type 8201 pH measuring system is suitable for measuring absolute pH values in liquids between pH 0 and pH 12 at medium temperatures of up to 140°C and process pressures of max. 6 bar. Due to its hygienic design and the robust glass-free construction, this model is particularly suitable for use in hygienic processes. An example would be the production of foods and active ingredients, during which the pH value of liquid mediums - including those which are viscous or contain solids - is measured. The pH electrode's extremely smooth enamel surface inhibits the medium from sticking and is very easy to clean in line. Due to its robust design and high temperature and chemical tolerance, the electrode stays in the process even during a CIP purification. This means that expensive retractable fittings can be dispensed with.

（1）Special glass-free probe for measuring pH to be connected to Type 8619 multiCELL

（2）Sterile design, CIP-compatible, in-line sterilizable

（3）Robust and unbreakable construction

（4）Long service life, long calibration intervals

（5）Especially suitable when preparing foods and drinks
