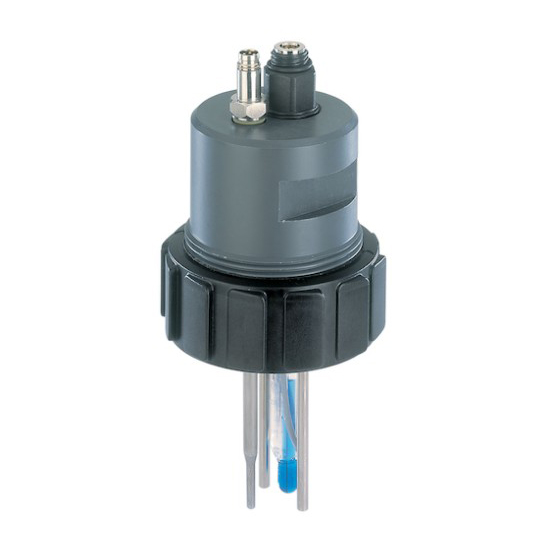

8200型分析探针的配件 德国burkert

类型描述

Bürkert 公司的 pH 值或氧化还原电位传感器，是一种模块化的设备，用于测量：- 洁净、脏污、含有硫化物或蛋白质的液体 pH 值。- 洁净、脏污、含有硫化物或蛋白质、电导率很小的液体氧化还原电位。完整的传感器元件由一个可更换的标准型 pH 或氧化还原电位探针 (120 mm)、一个 Pt1000 温度传感器或一个接地销（作为选项、取决于传感器的结构）构成，所述的接地销旋在一个 8200 型探针固定架中。8200 型探针固定架具有不同的连接可能性。8200 型探针固定架可被应用于管道或容器中，需要使用以下接头：- G2“ 接头（带有一个型号为 S020 的 Bürkert 插件接头）- G1“ 接头 - G1?“ 接头 - Varivent 接头 - 压合接头 - 牛奶管螺纹套管接头（参照 DIN 11851）。- 用于延长管的固定套件

（1）适合各种不同的设备和应用领域

（2）大量探针支架可供选择

（3）适合 DN15 至 DN200 的结构



Type 8200 - Armatures for analytical probes

Type Description

The holder range for 120 mm analytical probes (pH/ORP/conductivity...) covers many types of applications: - General purpose - Water treatment - Food & Beverage - Pharmaceutical/Biotechnology. A wide range of process connections are available for: General purpose holders mounted on pipes or tanks Hygienic holders designed for hygienic applications: - 3-rod holders which ensure good sensor protection and allow easy cleaning. Due to a sanitary design steam sterilisation, autoclavation, CIP are possible. - The direct welding holders save space and are designed for installation in fermenters and many other applications with tanks and pipes. Steam sterilisation, autoclavation, CIP are possible. - Special holders for the 2” Clamp connection or for DN50 thread process connections satisfy highest demands, for example, in CIP-applications A Pt1000 temperature probe is available as an option. - The 15° version with 2" (DN50/40) connection adapted for GEA Tuchenhagen VARINLINE process connections enables positioning of the probe in relation to the flow or in vertical pipes. A special holder, the analytical measurement chamber Type 8200, is designed to be used with the chlorine sensor Type 8232.

（1）For many different types of installations and applications

（2）Large range of probe holders

（3）General purpose, water treatment, food & beverage, pharmaceutical applications
