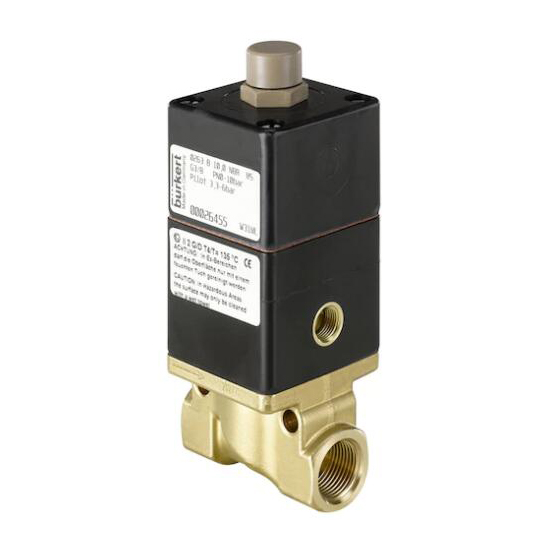

0263型气动2/2通阀 电磁阀宝德宝帝 burkert
类型 0263 - Pneumatically operated 2/2 way Valve with isolating diaphragm
The externally controlled valve is pneumatically operated. It consists of a diaphragm actuator and a 2-way valve body. Between the valve body and the actuator, there is a hermetically sealed diaphragm. The diaphragm actuator moves a spindle with valve disc against a spring and switches the valve. The spindle is designed glandless with double seal. The actuator housing is made out of epoxy resin.
(1)Normally closed or open
(2)Body material: Brass, Stainless steel
(3)Hermetical separation of fluids from the operating mechanism by diaphragm
(4)Compact design
