8045型插入式电磁流量计 德国burkert

类型描述

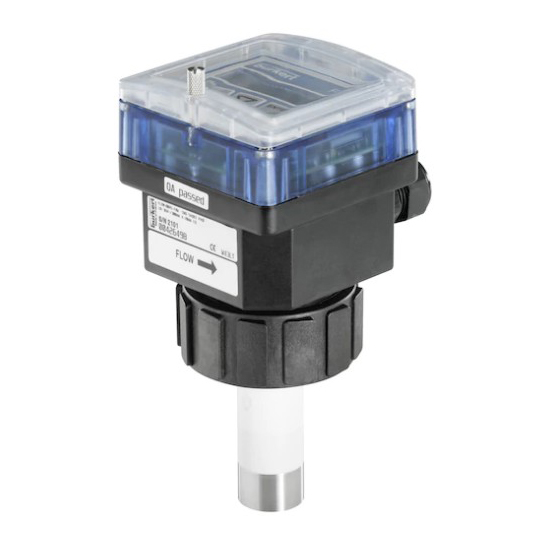

8045型电磁流量计是由一带背光显示屏的电子模块、操作按钮和PVDF或不锈钢材质的传感器组成。它适用于DN06...DN400的管径以及电导率大于 20 μS/cm中性和轻微腐蚀性液体。8045型电磁流量计配备4...20 mA输出，数字量输出（预设为脉冲输出）。部分版本提供2个继电器输出和一个数字量输入。两个独立的计量器计算流量。 可提供接口：-配套PVDF传感器的G2“接口 -配套不锈钢传感器的G2"或卡箍接头 配置不锈钢传感器的8045流量计可在较高压力（PN16)和较高温度(110°C)场合应用。配置C22合金版本电极可在腐蚀性液体（化学品）和海水场合的应用。

（1）无活动部件的传感器

（2）显示瞬时流量和总量

（3）模拟输出信号

（4）在线清洗（CIP），取得FDA认证的材料

（5）C22合金电极



Type 8045 - Insertion magnetic inductive flowmeter

Type Description

The electromagnetic flowmeter 8045 is made up of an electronic module including a backlit display, operating keys and a sensor consisting of PVDF or stainless steel material. It has been designed to measure a flow rate of neutral and slightly aggressive fluids with a conductivity of more than 20 μS/cm in DN06...DN400 pipes. It is equipped with a 4...20 mA output, a digital output (pulse output by default). Some versions are equipped with two relay outputs and one digital input. Two independent totalizers allow counting the flow rate. The available process connections are: - G2” connection for the version with a PVDF sensor - G2” or clamp connection for the version with a stainless steel sensor. The version with a stainless steel sensor can be used in applications with higher pressures (PN16) and higher temperatures (110°C). The version with Alloy C22 electrodes has been designed for applications with aggressive fluids (chemicals) and especially sea water applications.

（1）Sensor without moving parts

（2）Indicates both flow rate and volume

（3）Simulation of all output signals

（4）Clean in place (CIP), FDA-compliant materials

（5）Version with Alloy C22 electrodes
