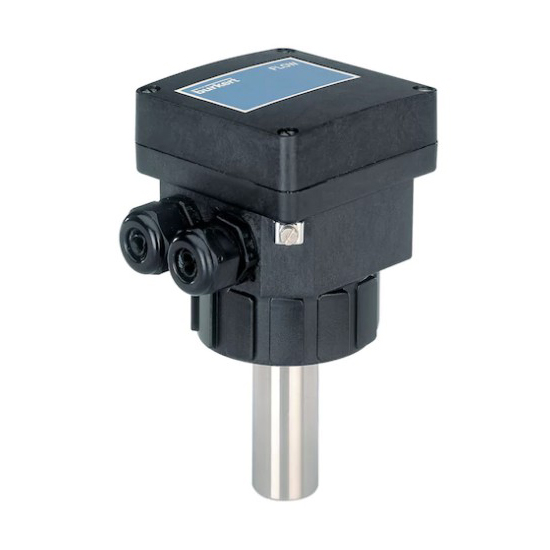

8041型插入式电磁流量计 德国burkert

类型描述

8041型电磁流量计是由一个电子模块和一个PVDF或不锈钢材质的传感器组成。它适用于DN06...DN400的管径以及电导率大于 20 μS/cm中性和轻微腐蚀性液体。8041型电磁流量计配备 4...20 mA输出，脉冲输出和继电器输出。可根据5 DIP开关、一个按钮和10个LED光柱显示设定不同参数。 可提供：-配套PVDF传感器的G2"接头 -配套不锈钢传感器的G2"或卡箍接头。 配置不锈钢传感器的8041流量计可在较高压力（PN16)和较高温度(150°C)场合应用。

（1）无活动部件的传感器

（2）带开/关控制功能的流量计

（3）Teach-In功能进行相关校准

（4）在线清洗（CIP）

（5）FDA认证



Type 8041 - Insertion magnetic inductive flowmeter

Type Description

The electromagnetic flowmeter 8041 is made up of an electronic module and a sensor consisting of PVDF or stainless steel material. It has been designed to measure a flow rate of neutral and slightly aggressive fluids with a conductivity of more than 20 μS/cm in DN06...DN400 pipes. It is fitted with a 4...20 mA output, a pulse output and a relay output. The different parameters can be set by means of 5 DIP switches, a push-button and a 10- field LED bargraph. It is available: - with G2” connection for the version with a PVDF sensor - with G2” or clamp connection for the version with a stainless steel sensor. The version with a stainless steel sensor can be used in applications with higher pressures (PN16) and higher temperatures (150°C).

（1）Sensor without moving parts

（2）Flowmeter with On/Off control

（3）Application related calibration by Teach-In function

（4）Clean in place (CIP)

（5）FDA-compliant materials
