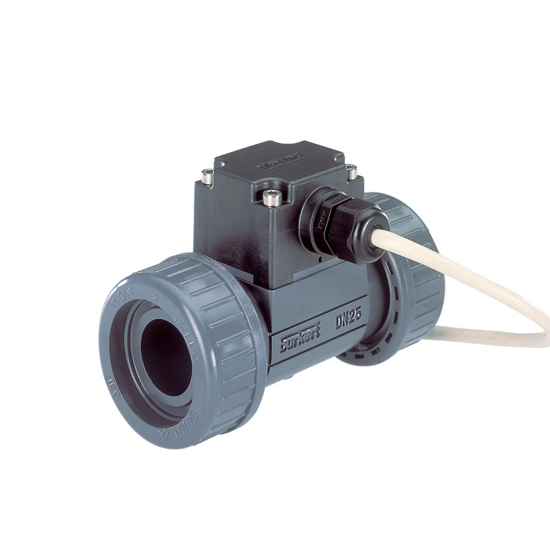

8011型Inline 叶轮式流量传感器 burkert

类型描述

带有叶轮的流量传感器，适合中性和弱侵蚀性的、不含固体的液体。传感器由一个接头（型号 S012）和一个电子设备模块（型号 SE11）构成。由 Bürkert 公司设计的接头系统，确保了传感器在所有 DN06 至 DN65 管道中的易安装性。它还可以集成安装在客户特有的组块系统中。传感器具有两种结构方式可用：- 脉冲输出端 NPN 晶体管 - 脉冲输出端 NPN 和 PNP。

（1）以低成本集成到管道系统中，不需额外的配管

（2）带有霍尔传感器的叶轮

（3）输出端：晶体管输出端（频率信号）



Type 8011 - Inline Paddle Wheel Flow sensor for continuous flow measurement

Type Description

The paddle-wheel flow sensor for continuous flow measurement is especially designed foruse in neutral, slightly aggressive, solid freeliquids. The sensor is made up of a fitting (S012) and an electronic module (SE11) connected together with screws. The Bürkert designed fitting system ensures simple installation of the sensor into all pipes from DN06 to DN65. It can also be installed in fluid block systems.The sensor produces a frequency pulse signal, proportional to the flow rate, which can easily be transmitted and processed by a Bürkert remote transmitter/indicator (type 8025/8032). The sensor is available in two versions:- with one pulse output: transistor NPN- with two pulse outputs: transistor NPN andPNP.

（1）Economic integration in pipe systems without any additional piping

（2）Magnetic measuring principle

（3）Output: transistor output (frequency pulse signal)
