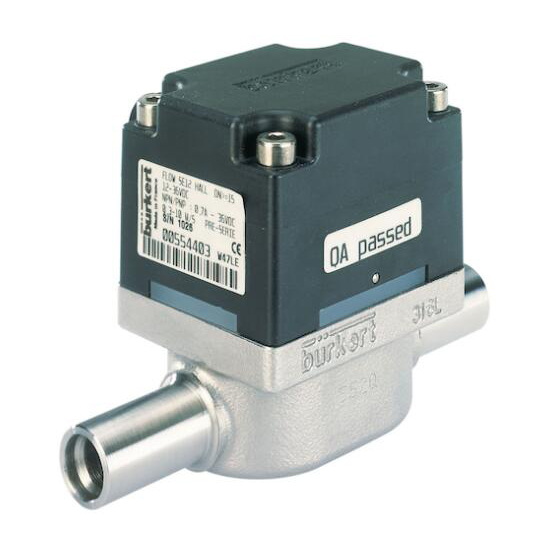

8012型 Inline 叶轮式流量传感器 burkert

类型描述

带有叶轮的流量传感器具有两种设计方案，其中磁性设计方案适合中性和弱侵蚀性的、不含固体的液体，而光学设计方案适合红外线可通过的液体。传感器由一个接头（型号 S012）和一个电子设备模块（型号 SE12）构成。由 Bürkert 公司设计的接头系统，确保了传感器在所有 DN06 至 DN50 管道中的易安装性。它还可以集成安装在客户特有的组块系统中。根据电子设备模块结构的不同，传感器具有一个脉冲输出端和一个 4-20 mA 电流输出端，所述的脉冲输出端可以产生一个与流量成正比的频率或者被作为开关输出端使用。

（1）以低成本集成到管道系统中，不需额外的配管

（2）测量原理：叶轮带有光学或磁性传感器

（3）输出端：1 个模拟输出端 4-20 mA 和/或 1 个晶体管输出端（频率或开关）

（4）输出端可编程（通过 USB 接口，用电脑）



Type 8012 - Flowmeter with paddle wheel for continuous flow measurement

Type Description

The paddle wheel flowmeter for continuous flow measurement is especially designed for use with neutral, slightly aggressive, solid free liquids in its magnetic measuring version and for use with liquids which let pass the infra-reds in its optic measuring version. The 8012 is made up of a fitting (S012) and an electronic module (SE12) which are connected together with screws. The Bürkert designed fitting system ensures simple installation into all pipes from DN06…DN65. It can also be installed in fluid block systems. The 8012 produces a configurable frequency pulse signal, proportional to the flow rate, which can easily be transmitted and processed by a Bürkert remote transmitter/controller, or a configurable switch output or a 4…20 mA signal.

（1）Economic integration in pipe systems without any additional piping

（2）Optic or magnetic measuring principle

（3）Configurable output: 1 analog 4...20 mA and/or 1 transistor output (frequency or switch)

（4）Outputs configurable (through interface on USB port with PC)
