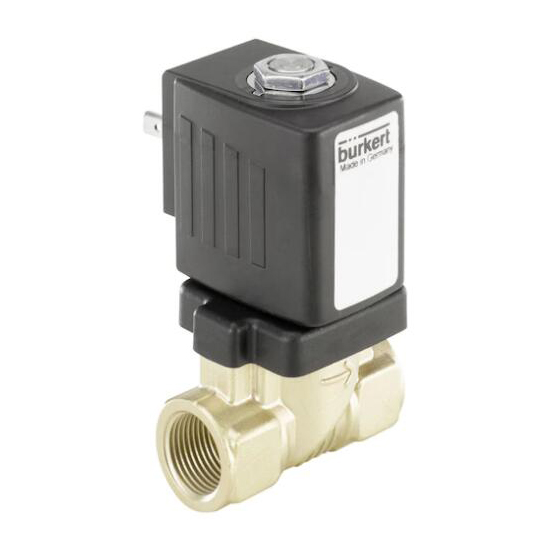

6213型伺服辅助式两位两通隔膜电磁阀 burkert

类型描述

6213 EV 为伺服辅助式S.EV系列电磁阀。通过膜片的弹性耦合打开阀门。其标准型适用于液体。要完全打开阀门，需要一个最小压差。有一个特殊型（HP00）可以不需要压差打开阀门，适合于气体和真空应用。根据不同的应用，可以选择各种膜片材质。标准供货的黄铜阀体符合所有欧洲饮用水标准的要求。具有无铅或抗脱锌腐蚀黄铜式，适合于其它应用。阀体材质还有不锈钢式。电磁线圈采用耐化学腐蚀的环氧树脂封装。所有线圈都可以带降功耗电子线路，用于节能。与 DIN EN 17301-803 A 型电缆插头配套，该阀的安全防护等级为 IP65，不锈钢阀体式 NEMA 4X。

（1）伺服辅助式隔膜电磁阀，最大通径 DN 40

（2）弹性耦合膜片，没有差压也可以打开阀门

（3）防震线圈

（4）阻尼设计，阀门动作静音

（5）一体成型的阀体具有较高的表面质量



Type 6213 - Diaphragm valve 2/2 way servo-assisted

Type Description

The 6213 EV valve is a servo-assisted solenoid valve of the S.EV series. The spring coupling of the diaphragm supports the opening process of the valve. In its standard version, the valve is suitable for use in liquids. A minimum differential pressure is required for complete opening. A special version (HP00) which opens the valve without differential pressure is available for gas and vacuum applications. Various diaphragm material combinations are available depending on the application. The standard brass housing satisfies all European drinking water requirements. Lead-free or dezincification-resistant brass types are available for other markets. The housing offering is rounded out by a stainless steel version. The solenoid coils are moulded with a chemically resistant epoxy. For reduced energy requirement, all coils can be delivered with electronic power reduction. In combination with a plug in accordance with DIN EN 175301-803 Form A, the valves satisfy protection class IP65 – in combination with a stainless steel housing NEMA 4X.

（1）Servo-assisted diaphragm with diameter of up to DN 40

（2）Spring coupled diaphragm opens without differential pressure

（3）Vibration-proof, screwed coil system

（4）Damped design for quiet closing

（5）Compact construction with high flow rate
