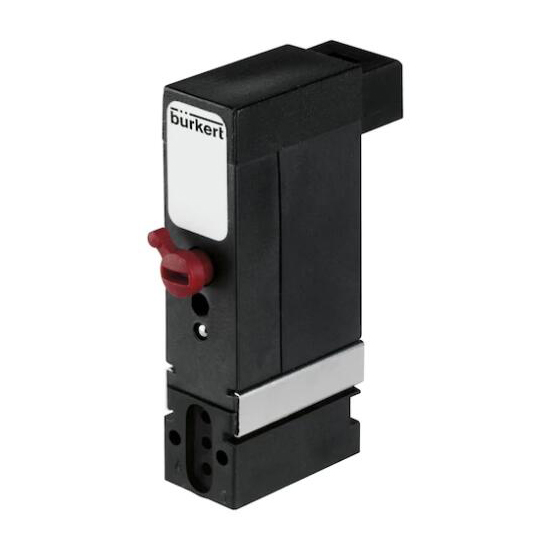

6144型二位三通 电磁阀 直动式 burkert

类型描述

型号 6144 是一种直动式二位三通电磁阀，适合中性气体和液体。开关元件 (Flipper) 在两个终端位置之间运动，密封两个相对的阀座中的一个，并将另一个与工作接口相连。此种运动是经由接通磁性线圈，使一个与 Flipper 固定相连的永久磁铁产生磁场，从而实现的。除了突出的功率数据之外，Flipper 原理的优势还在于其开关噪音非常小，并且几乎没有磨损。此外，集成式的介质分离系统还使得该产品能够用于气动技术之外的用途。根据使用情况的不同，可以为阀门提供不同的法兰接口，这些法兰接口既适合单个安装，也适合组块安装。安装提示：为避免运行条件下的错误功能，阀门与其他铁磁材料之间必须具备一个 5mm 的最小距离。

（1）直动式

（2）0 至 10 bar

（3）低电功率消耗

（4）法兰接头

（5）设计宽度为 10mm /串接尺寸为 11mm



Type 6144 - 3/2 way Flipper Solenoid Valve, direct acting

Type Description

Type 6144 is a direct-action 3/2-way solenoid valve designed for neutral gases and liquids. Through the movement between the 2 end positions, the switching element (fl ipper) seals one of the two opposing valve seats and connects the other to the working port. This movement is caused by the solenoids magnetic field pushing a permanent magnet that is fixed to the flipper element. In addition to its exceptional performance characteristics, the flipper principle is especially marked by its very low switching noise and its low wear level. Further more, integrated medium separation enables use above and beyond pneumatic applications. Depending on the case of operation, various flange connections are available that are suitable for both individual and block mounting. Installation advice: The valve must have a minimum distance of 5 mm from other ferromagnetic materials in order to avoid malfunctioning during operating conditions.

（1）Direct-acting

（2）0 to 10 bar

（3）Low power consumption

（4）Sub-base connection

（5）10mm width per station
