6027型直动式两位两通柱塞电磁阀 burkert

类型描述

6027为直动式柱塞电磁阀。止动器与柱塞导管焊接在一起，以提高耐压性和密封性。根据不同的应用，可以选择各种密封材质。电磁线圈采用耐化学腐蚀的环氧树脂封装。具有带“kick and drop”电子线路式（2511插头），用于过励磁和降低功耗。可选滑环轴承以提高使用寿命。采用专用密封技术，使该阀适用于高压应用。与 DIN EN 17301-803 A 型电缆插头配套，该阀的安全防护等级为 IP65，不锈钢阀体式 NEMA 4X。

（1）直动式电磁阀，最大通径 DN 12

（2）防震线圈

（3）采用焊接铁心导管，提高密封性能

（4）防爆式

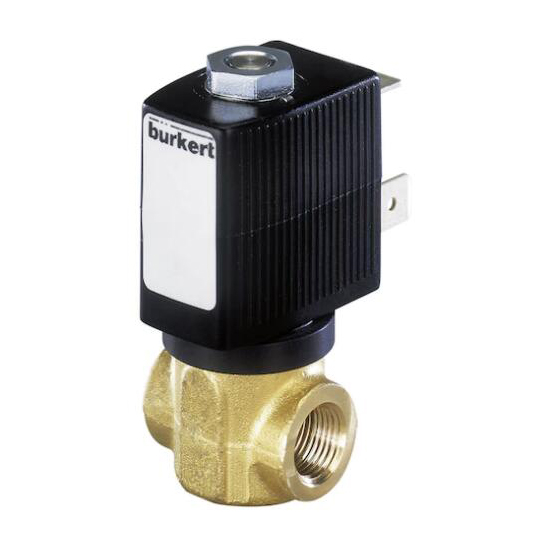

Type 6027 - Plunger valve 2/2 way direct-acting

Type Description

Valve 6027 is a direct-acting plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. The coils are moulded with chemically resistant epoxy. 'Kick and Drop' electronics are available for overexcitation (plug 2511) for the reduction of electrical power consumption during operation. An optional sliding ring bearing increases the service life with dry gases. Special seal technology is used for high-pressure applications. In combination with a plug in accordance with DIN EN 17301-803 Form A, the valves satisfy protection class IP65. Stainless steel valves satisfy NEMA 4X.

（1）Direct-acting, powerful valve with diameter of up to DN 12

（2）Vibration-proof, bolted coil system

（3）Increased leak-tightness with welded plunger guide tube

（4）Explosion proof versions
