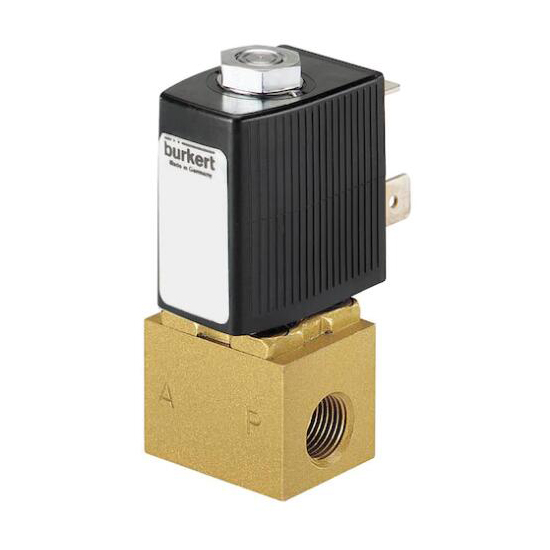

6011型 直动式两位两通柱塞电磁阀 burkert

类型描述

6011为直动式柱塞电磁阀。止动器与柱塞导管焊接在一起，以提高耐压性和密封性。根据不同的应用，可以选择各种密封材质。Bürkert专用底板接口使该阀可组合安装在底板上，节省空间。可选插管接头式连接软管。电磁线圈采用聚酰胺封装。与 DIN EN 17301-803 B 型或 C 型电缆插头配套，该阀的安全防护等级为 IP65。

（1）直动式紧凑小型电磁阀，最大通径 DN 2.4

（2）防震线圈

（3）简单快速的底板连接

（4）快接接头（插管接头），用于软管连接



Type 6011 - Plunger valve 2/2 way direct-acting

Type Description

Valve 6011 is a direct-acting plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. A Bürkert-specific flange design (SFB) enables space-saving arrangement of valves on a manifold. Push-in fittings can be selected for flexible hose connection. The coils are moulded with polyamide. In combination with a plug in accordance with DIN EN 17301-803 Form B or C, the valves satisfy protection class IP65.

（1）Direct-acting and compact small-format valve with diameter of up to DN 2.4

（2）Vibration-proof, bolted coil system

（3）Simple and quick flange or manifold installation

（4）Quick coupling (push-in fitting) for plug-in hose connections
