5413型气动系统的二位四通电磁阀 burkert

类型描述

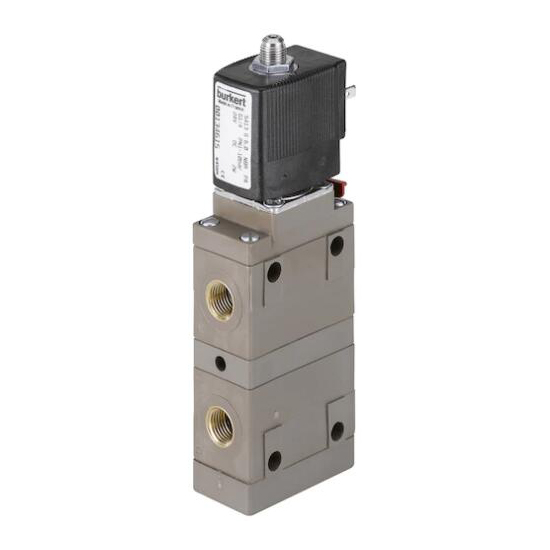

型号 5413 是一种二位四通的先导式电磁阀，带有伺服活塞。转换时，要求一个 1 bar 的最小压差。可以将阀门集合到单通道连接板（例如，与型号 5411 一起）或双通道连接板上，在双通道连接板上，集合了与阀门电池共用的压缩空气供应系统和所收集的废气。阀体由聚酰胺材料制成。标准结构带有手动操作装置。



Type 5413 - 4/2 way Solenoid Valve for pneumatics

Type Description

Type 5413 is a pilot operated 4/2-way solenoid valve with manual override as standard. A 3/2 way solenoid pilot valve allows control. The valve consists basically of two assembled 3/2-way valves for ports A and B with a counter built-in servo piston with seat seals. Through pilot channels, the servo piston is operated at the inlet pressure and pushed either apart or towards the valve centre. To switch a minimum pressure difference of 1 bar is required.

（1）Robust servo assisted piston valve

（2）Service friendly manual override

（3）Single or block assembly

（4）Explosion-proof versions
