SE56型磁感式流量传感器的传送器 burkert

类型描述

电子装置型号 SE56（不带显示器的紧凑型规格或带显示器的紧凑型规格或分体式规格），与电磁感应的传感器配件型号 S051、S054、S055 或 S056 相连接，适用于电导率至少为 μS/cm 的液体。可通过 3 个按键（带显示器的规格）或与电脑相连的串联接口使设备参数化。在标准规格中，供应的设备带 1 个或 2 个晶体三极管输出端和一个数字输入端。此外，还提供例如高频输出端、电流输出端、 PROFIBUS DP、HART 等选项。

（1）与传感器接头 S051、S054、S055 或 S056 相组合

（2）持续测量或计量

（3）高精度

（4）PROFIBUS DP 以及 HART 是可用的

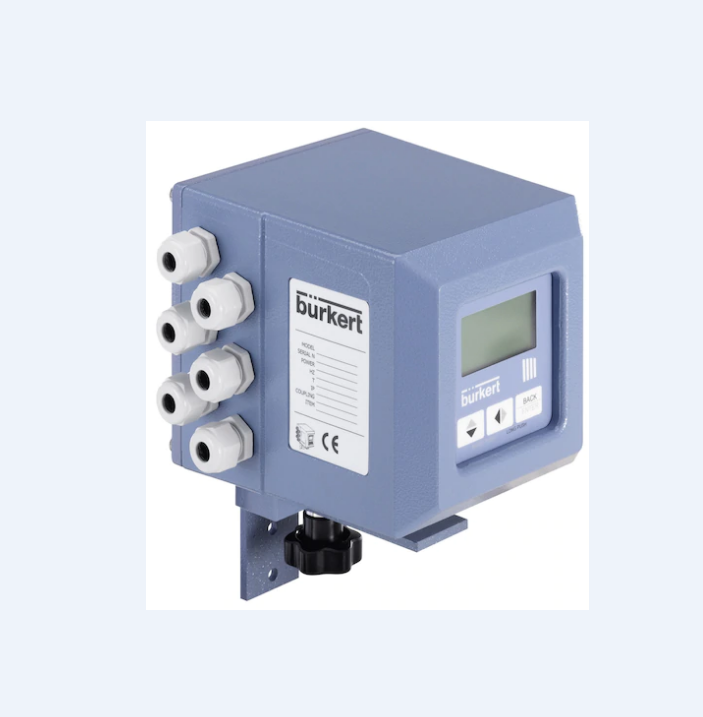

Type SE56 - Transmitter for magnetic induction flow sensors

Type description

Electronic device type SE56 (compact size without display or compact or split version with display), connected to electromagnetic induction sensor accessory type S051, S054, S055 or S056 for conductivity of at least μS/ Cm liquid. The device can be parameterized by means of 3 buttons (with display specifications) or a serial interface connected to the computer. In the standard specification, the supplied equipment has 1 or 2 transistor outputs and a digital input. In addition, options such as high frequency output, current output, PROFIBUS DP, HART are also available.

(1) Combined with sensor connector S051, S054, S055 or S056

(2) Continuous measurement or measurement

(3) High precision

(4) PROFIBUS DP and HART are available
