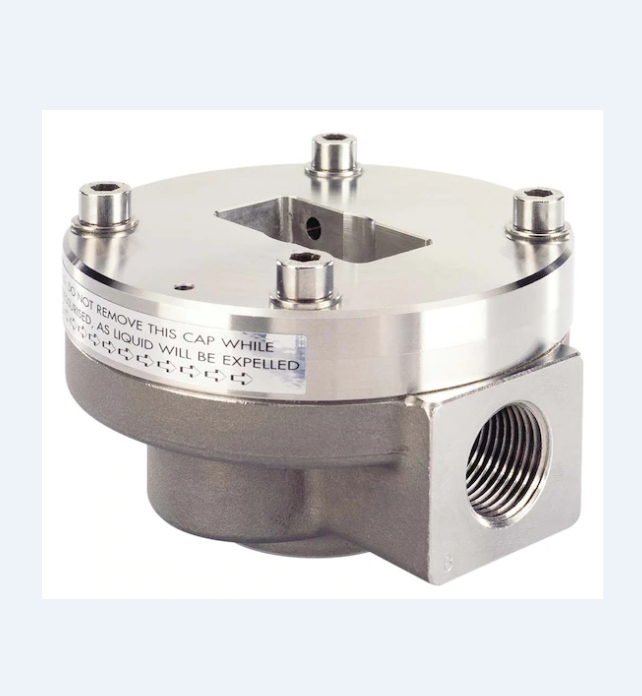

S070型Inline 椭圆齿轮传感器 德国burkert
类型 S070 - Inline 椭圆齿轮传感器
类型描述
该接头专门用于流量测量,适合具有高粘度的介质,比如胶水、蜂蜜或机油。通过所谓的“直角转弯”技术,可以将流量接头 S070 简单地与 Bürkert 电子设备模块 SE30、SE32、SE35、SE36(均带有霍尔传感器)相连。接头根据椭圆齿轮测量原理工作。使用这种多年以前通过试验得出的原理,可以在较大的流量和粘度范围内,进行非常准确和可重复的测量。低压力损失和高抗压强度使其能够应用于各种不同的用途。
(1)DN 15 至 100
(2)INLINE 直角转弯技术
(3)可提供适合显示、监控、信号传输、两点式调节以及计量控制的电子设备
Type S070 - Inline Oval Gear Sensor
Type description
This connector is designed for flow measurement and is suitable for media with high viscosity such as glue, honey or motor oil. With the so-called "right-angle turning" technology, the flow connection S070 can be easily connected to the Bürkert electronics modules SE30, SE32, SE35, SE36 (both with Hall sensors). The joint works according to the principle of elliptical gear measurement. Using this principle, which was tried many years ago, allows for very accurate and repeatable measurements over a wide range of flow rates and viscosities. Low pressure loss and high compressive strength make it suitable for a variety of different applications.
(1) DN 15 to 100
(2) INLINE right angle turning technology
(3) Electronic equipment suitable for display, monitoring, signal transmission, two-point adjustment and metering control
