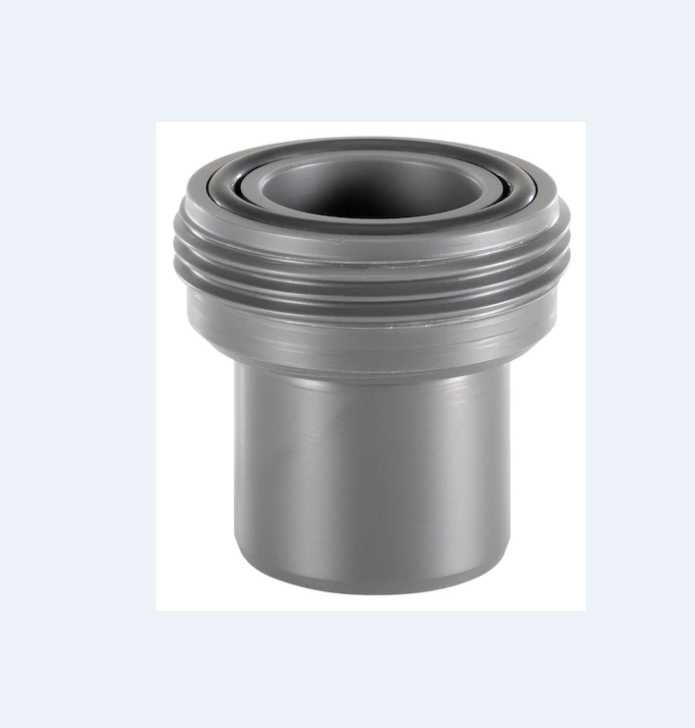

S022型pH 和传导性电导率测量仪的接头 burkert

类型描述

适配器的作用是，将 ELEMENT 分析传送器安装到管道系统或容器中。存在不同的套管设计可供使用：- 用于 T 型接头的 PVC-U 粘性套管（公制或 ASTM） - 用于 T 型接头的 PP 焊接套管 - 不锈钢焊接套管 - 用于旋到容器或管道中的 PVC 螺纹套管 - 由 PVC、PP 和不锈钢构成的更换用套管，用于将接头从 S020 改装为 S022

（1）通用适配器，适合中性、侵蚀性或脏污液体中所用的、型号为 8202 和 8222 的 ELEMENT 传送器

（2）调整为标准管道系统，或者从 Bürkert S020 改装为 S022 接头

（3）管件公称通径从 DN 06（减配）至 DN 110（塑料）或者更大（不锈钢）



Type S022 - Connector for ELEMENT pH and Conductivity Conductivity Meters

Type description

The purpose of the adapter is to install the ELEMENT analysis transmitter into a piping system or container. Different sleeve designs are available: - PVC-U adhesive sleeve for T-joints (metric or ASTM) - PP welded sleeve for T-joints - Stainless steel welded sleeve - for screwing to the container Or PVC threaded bushings in pipes - replacement bushings made of PVC, PP and stainless steel for the conversion of joints from S020 to S022

(1) Universal adapter for ELECT transmitters of type 8202 and 8222 for use in neutral, aggressive or dirty liquids

(2) Adjust to standard piping system, or convert from Bürkert S020 to S022 connector

(3) Nominal diameter of pipe fittings from DN 06 (substitution) to DN 110 (plastic) or larger (stainless steel)
