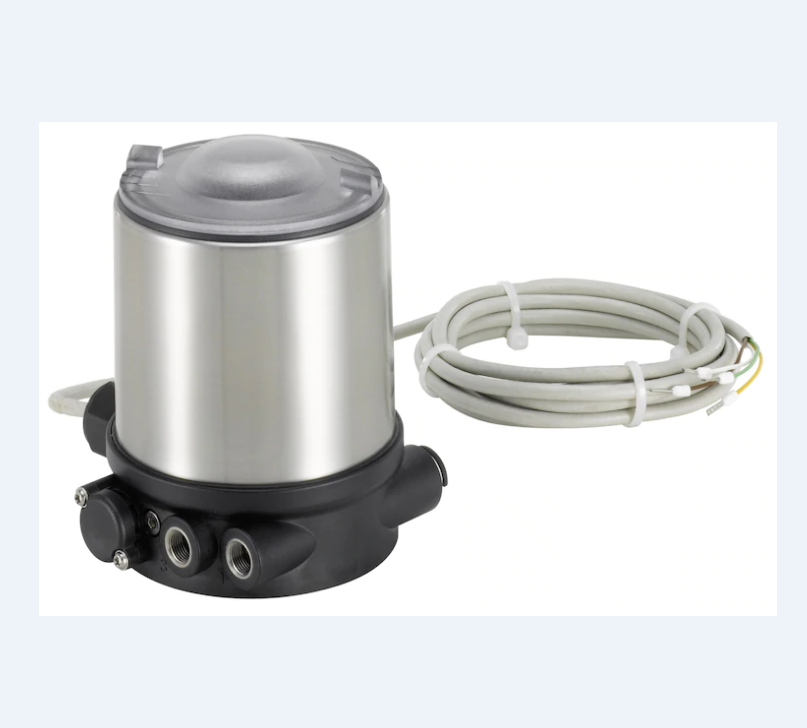

8798型调节阀的远程传感器 德国burkert

类型描述



远程传感器 8798 型是一款数字化非接触式行程吸收器，适用于在气动操作的调节驱动器上进行使用。该传感器有直线式和旋转式两种行程吸收器版本，且可与位置调节仪 8791/8792 型和工艺调节仪 8793 型（远程规格）连接使用。直线式远程传感器可与我们的 ELEMENT 系列 210X/230X 型和 CLASSIC 27XX 型调节阀组合使用。反之，依照 NAMUR 建议 (DIN IEC 534-6) 在推力驱动器上或依照 VDI/VDE 3845 标准在摆动驱动器上安装旋转式远程传感器。

（1）数字化信号传输至远程定位器/工艺调节仪

（2）可选择各种导线长度

（3）依照 NAMUR/IEC534-6 或 VDI/VDE 3845 标准安装（旋转式传感器）

（4）在活塞驱动器上一体化安装（直线式传感器）

（5）具有 ATEX II 3G/D 类认证（直线式传感器）



Type 8798 - Remote sensor for pneumatically operated regulating valves

Type description



Remote Sensor The Model 8798 is a digital, non-contact stroke absorber for use on pneumatically operated adjustment drives. The sensor is available in both linear and rotary versions of the stroke absorber and can be used in conjunction with the Position Controller Model 8791/8792 and the Process Regulator Model 8793 (Remote Size). Linear remote sensors can be combined with our ELEMENT Series 210X/230X and CLASSIC 27XX regulators. Instead, install a rotary remote sensor on the sway drive on the thrust drive or in accordance with the VDI/VDE 3845 standard in accordance with NAMUR recommendations (DIN IEC 534-6).

(1) Digital signal transmission to remote positioner / process regulator

(2) Various wire lengths can be selected

(3) Installation according to NAMUR/IEC534-6 or VDI/VDE 3845 (rotary sensor)

(4) Integrated installation on the piston driver (linear sensor)

(5) ATEX II 3G/D type certification (linear sensor)
