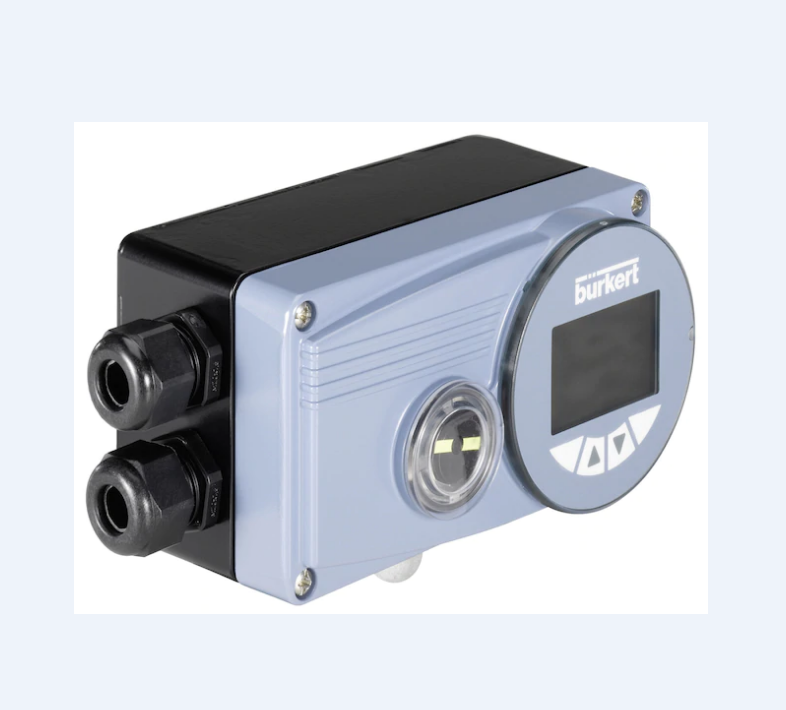

8792型数字化电气定位器侧部控制器 burkert

类型描述



紧凑耐用的定位器，符合 IEC 534-6 或 VDI/VDE 3845标准，为集成安装到线性和摆动式执行机构而设计。还有带有位移位置传感器的远程版本，可与Bürkert 过程控制阀结合使用。数字化的电气定位器侧部控制器可以使用常规电流和电压标准信号，也可配备现场总线接口。定位器配有额外的诊断功能，以监控阀门的状态。依照NAMUR NE107标准，将阀门诊断信息的状态信号作为历史条目进行记录。通过诊断，可以监控控制阀的运行条件。通过带背光灯的图形显示模块进行外部操作。使得用户操作简便，与Bürkert定位器或过程控制器8692/8693顶部控制器相同。先导阀系统可用于单作用或双作用执行机构。

（1）紧凑耐用的设计

（2）通过Tune功能实现简单调试

（3）集成诊断功能用于检测阀门状态

（4）PROFIBUS DP-V1, DeviceNet, EtherNet/IP, PROFINET, Modbus TCP or büS (Bürkert System Bus)

（5）现场总线 DPV1 或 DeviceNet（选装）



Type 8792 - Digital Electrical Positioner Side Controller

Type description

Compact and durable positioner in accordance with IEC 534-6 or VDI/VDE 3845, designed for integrated mounting to linear and oscillating actuators. There is also a remote version with a displacement position sensor that can be used in conjunction with the Bürkert process control valve. The digital electrical positioner side controller can be used with conventional current and voltage standard signals or with a fieldbus interface. The positioner is equipped with additional diagnostics to monitor the status of the valve. The status signal of the valve diagnostic information is recorded as a history entry in accordance with the NAMUR NE107 standard. Through the diagnosis, the operating conditions of the control valve can be monitored. External operation is performed by a graphic display module with backlight. This makes the user easy to operate, the same as the Bürkert positioner or process controller 8692/8693 top controller. The pilot valve system can be used with single or double acting actuators.

(1) Compact and durable design

(2) Simple debugging through the Tune function

(3) Integrated diagnostic function for detecting valve status

(4) PROFIBUS DP-V1, DeviceNet, EtherNet/IP, PROFINET, Modbus TCP or büS (Bürkert System Bus)

(5) Fieldbus DPV1 or DeviceNet (optional)
