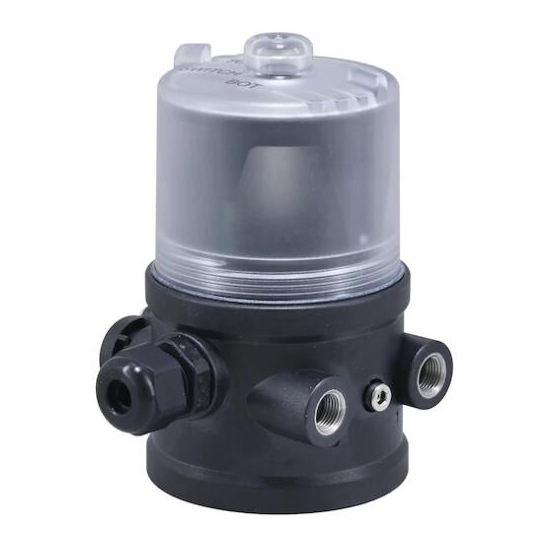

8697型ELEMENT气动控制过程阀 德国burkert

类型描述

气动控制单元 8697 型专门为 ELEMENT 21xx 系列分离式自动化的过程阀而设计。机械或感应式限位开关检测阀门位置。一体化先岛阀可控制单作用或双作用执行机构。控制单元和执行机构的的设计，无外部管道系统的情况下即可实现内部的空气控制。除电子位置反馈信息外，通过LEDs直接显示气动控制单元上的设备状态。外壳易清洗，IP防护等级和耐化学腐蚀性材料等特点，适用于食品、饮料和制药高卫生级应用领域。



（1）紧凑型设计

（2）集成带手动操作装置的先导阀

（3）位置反馈器自动调节

（4）ATEX II 3G/D 类和 2D/G 类认证

（5）具有 ATEX II 3G/D 类和 2D/G 类认证



Type 8697 - Pneumatic control unit for decentralized automation of ELEMENT process valves

Type Description

The pneumatic control unit Type 8697 is designed for decentralized automation of process valves ELEMENT Type 21xx. Mechanical or inductive limit switches register the position of the valve. The integrated pilot valve controls single-acting actuators. The design of the control unit and the actuator enables an internal control air routing without external tubings. Besides the electrical position feedback signal the status of the device is shown directly on the control unit itself via LEDs. The housing is easy to clean and features proven IP protection and chemically resistant materials for use in hygienic processing, in food, beverage and pharmaceutical industries. Combined with Bürkert ELEMENT actuators the unique pilot valve system enables a compressed air recycling that avoids actuator chambers contamination from the environment.

（1）Compact Design

（2）Integrated pilot valve with manual override

（3）Integrated control air routing

（4）Automatic end position adjustment

（5）With ATEX II cat. 3G/D and cat. 2D/G approval

With ATEX II cat. 3G/D and cat. 2D/G approval
