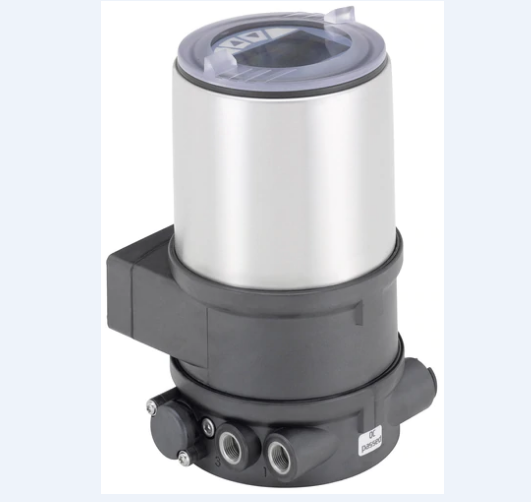

8693型数字化电气控制器的过程控制阀 burkert

类型描述



紧凑型过程控制器8693 型经过优化，可集成安装到23xx/2103系列过程阀的气动执行机构上，为满足高卫生级要求而设计。过程控制器通过方差比较计算出从属定位器的设定值。利用模拟信号反馈，将所有模拟值传送到控制级别。集成的诊断功能，可监控调节阀的运行条件。依照NAMUR NE107标准，将阀门诊断信息的状态信号作为历史条目进行记录。过程控制器和定位器的参数可以自动执行。通过带背光的大尺寸显示屏和键盘或COMMUNICATOR，轻松实现操作和附加软件功能的选择。定位器通过非接触式模拟位置传感器检测阀门位置。无需内部空气驱动即可控制单作用或双作用执行机构。可选配通讯接口PROFIBUS DP-V1, DeviceNet, EtherNet/IP, PROFINET, Modbus TCP, büS (基于 CANopen) 和模拟信号等。

（1）紧凑耐用的不锈钢设计

（2）位置和过程控制器通过Tune 功能实现简单调试

（3）非接触式位置传感器

（4）PROFIBUS DP-V1, DeviceNet, EtherNet/IP, PROFINET, Modbus TCP or büS (Bürkert System Bus)

（5）现场总线 DPV1 或 DeviceNet 通讯（选项）



Type 8693 - Process Control Valve with Integrated Digital Electrical Controller

Type description



The compact process controller Model 8693 is optimized for integrated installation into the pneumatic actuators of the 23xx/2103 series process valves and is designed to meet high hygiene requirements. The process controller calculates the setpoint of the slave positioner by means of variance comparison. All analog values ??are passed to the control level using analog signal feedback. An integrated diagnostic function that monitors the operating conditions of the regulator. The status signal of the valve diagnostic information is recorded as a history entry in accordance with the NAMUR NE107 standard. The parameters of the process controller and positioner can be executed automatically. Easily implement operation and add-on software features with a large, backlit display and keyboard or COMMUNICATOR. The positioner detects the valve position via a non-contact analog position sensor. Single- or double-acting actuators can be controlled without internal air drive. Optional communication interfaces PROFIBUS DP-V1, DeviceNet, EtherNet/IP, PROFINET, Modbus TCP, büS (based on CANopen) and analog signals.

(1) Compact and durable stainless steel design

(2) Position and process controllers enable simple debugging through the Tune function

(3) Non-contact position sensor

(4) PROFIBUS DP-V1, DeviceNet, EtherNet/IP, PROFINET, Modbus TCP or büS (Bürkert System Bus)

(5) Fieldbus DPV1 or DeviceNet communication (optional)
