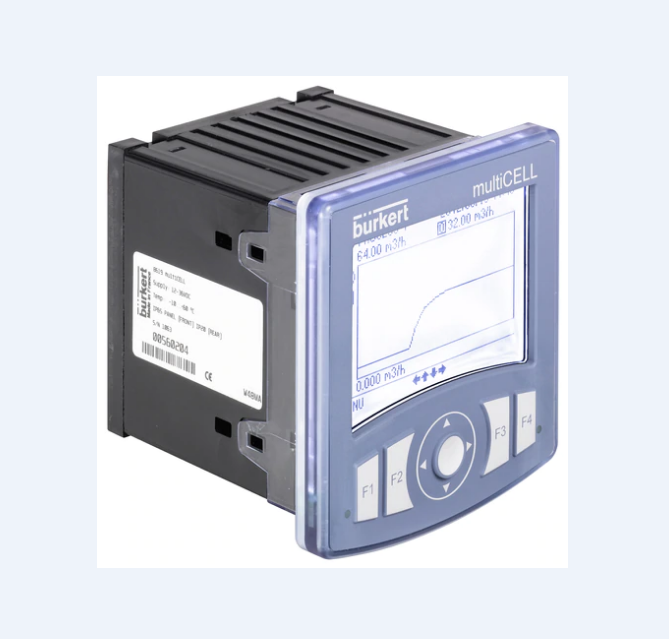

8619型多通道/多功能变送器/控制器 burkert

类型描述



8619 多通道和多功能变送器/控制器是一个微处理器变送器/控制器，有面板安装或壁挂版本可供选择。它可以直接连接提供脉冲检测的原始信号（如 pH、ORP、电导率和流量）的传感器或直接连接提供模拟信号（0…20 mA、4…20 mA、0…2 V、0…5 V、0…10 V）的传感器（如压力、液位、氯……）。它是水处理设备（如锅炉、冷却塔和反渗透系统）、食品和制药设备应用中测量、控制和计量任务的理想设备。硬件和软件的模块化设计提供了适应特定应用的高度灵活性，并具有较高的性价比。先进的电子元件和最新的控制和调节算法确保了最佳的工艺控制，几乎不需要操作员的干预就可以实现最高的质量。8619 型完全支持 Modbus TCP 和 PROFINET（合规性 B 类）或 EtherNet/IP，可以集成到大多数工业以太网环境中。这意味着所有重要的过程值（例如测量数据、过程诊断或设备状态）都可以轻松地传输到自动化系统中。



（1）可以直接连接绝大部分的流量、pH/ORP 值、氯含量和电导率传感器

（2）操作界面简单又直观，配套大尺寸图形显示屏，背景照明可以进行设置（4 种用户自定义视图）

（3）基础变送器/控制器硬件提供扩展可能（最多 6 个可自由配置的插槽）

（4）工业以太网（Modbus TCP、PROFINET 或 EtherNet/IP）可选购

（5）通过选配的软件实现功能扩展



Type 8619 - multiCELL - Multichannel / Multifunction Transmitter / Controller



Type description



The 8619 Multichannel and Multifunction Transmitter/Controller is a microprocessor transmitter/controller with a panel mount or wall mount version to choose from. It can be directly connected to sensors that provide raw signals for pulse detection (such as pH, ORP, conductivity and flow) or directly connected to provide analog signals (0...20 mA, 4...20 mA, 0...2 V, 0...5 V, 0...10 V) sensors (eg pressure, level, chlorine...). It is ideal for measurement, control, and metering tasks in water treatment equipment such as boilers, cooling towers, and reverse osmosis systems, and in food and pharmaceutical applications. The modular design of hardware and software provides a high degree of flexibility for a specific application and a high price/performance ratio. Advanced electronics and state-of-the-art control and regulation algorithms ensure optimal process control and achieve the highest quality with virtually no operator intervention. The Model 8619 fully supports Modbus TCP and PROFINET (Compliance Class B) or EtherNet/IP and can be integrated into most Industrial Ethernet environments. This means that all important process values ??(eg measurement data, process diagnostics or device status) can be easily transferred to the automation system.



(1) can directly connect most of the flow, pH / ORP value, chlorine content and conductivity sensor

(2) The operation interface is simple and intuitive, with a large-size graphic display, and the background illumination can be set (4 user-defined views)

(3) The base transmitter/controller hardware provides expansion possibilities (up to 6 freely configurable slots)

(4) Industrial Ethernet (Modbus TCP, PROFINET or EtherNet/IP) is available

(5) Function expansion through optional software
