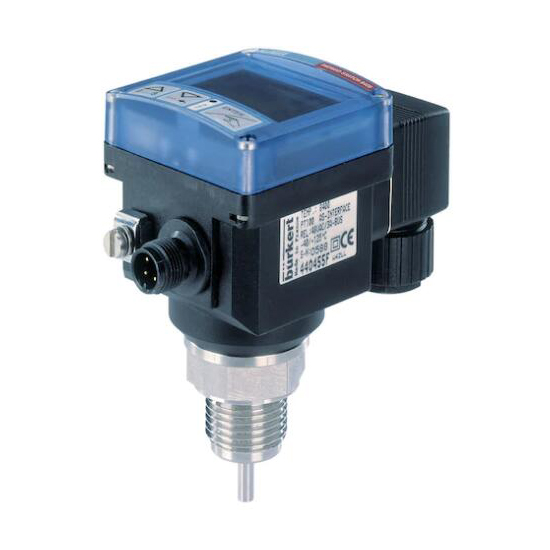

8400型螺纹式，带显示温度传感器 / 开关 burkert

类型描述

这款智能传感器/开关配置有超大显示屏用于监测极限值或者控制开关或连续回路。两种规格可供选择：8400紧凑型和8400墙装式。墙装式需要安装到墙上的支架中，并与一个远程温度传感器配合使用。可以在显示屏上直接设定开关点，也可以通过外部PLC的4...20 mA信号输入来编程控制。除此之外，4...20 mA信号过程值可以传送至PLC。8400型可通过G1/2标准T型管接件连接管路。

（1）在一台仪器中进行测量值显示、监控、传输及 On/Off 调节

（2）大尺寸数字指示器

（3）通过菜单进行参数化

（4）外部设定值，闭环控制回路



Type 8400 - Screw-in temperature sensor/switch with display

Type Description

This intelligent sensor/switch with an extra-large display is specifically designed to monitor limit values or an ON/OFF or continuous control loop. Two versions are available: the 8400 Compact and 8400 for wall mounting. The wall-mounted version must be inserted into a holder previously mounted on a wall, and it must be associated with a remote temperature sensor. The switching points can be programmed with keys directly in the display or optionally with a 4...20 mA standard signal input from an external PLC. As an option, the process value can additionally be transmitted to the PLC (4...20 mA with a 4...20 mA signal). The connection of the 8400 to the process in the piping is made using standard T-fittings with standard connections (G1/2).

（1）Indication, monitoring, transmitting and On/Off control in one device

（2）Extra-large display

（3）Menu-guided parametrisation

（4）Complete control loop with external setpoint
