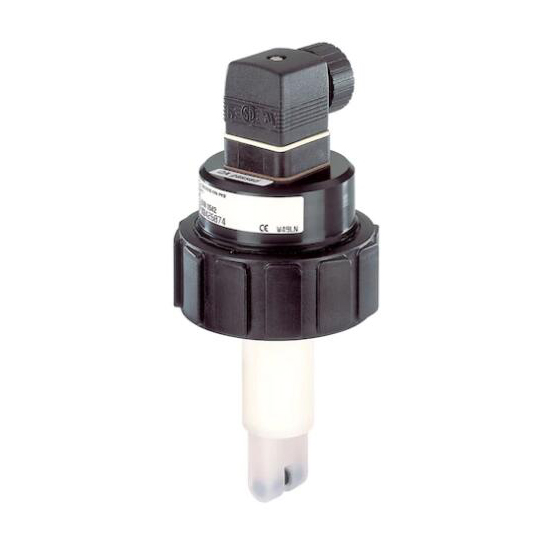

8220型电导率传感器 德国burkert

类型描述

电导率传感器采用紧凑设计，内置电导率电极，电极类型多样化。四款电导率传感器具有不同的电池常数，能够覆盖广泛的测量范围。传感器单元标配集成式 pt1000，可以自动进行温度补偿。该传感器生成一个原始信号，且在供货时标配一个符合 EN175301- 803 的标准插头。传感器必须连接在 Bürkert 8619 型 multiCELL 上。连接时需要使用一根 4x1.5 mm2 的屏蔽电缆（电缆长度：最长 10 m）。电导率传感器内置在 S020 型设备的一个 INSERTION 配件中，S020有多种材质可供选择（详情请见 S020 数据页）。 为了在罐桶和容器中使用，提供加长规格以及一个浸入式组件。

（1）紧凑型结构，适合 DN15 至 DN200

（2）通过不同的单元常数实现了高测量范围覆盖率

（3）与不同接头的多样连接可能性



Type 8220 - Conductivity sensor

Type Description

The conductivity sensor is a compact probe with integrated conductivity electrodes. Four conductivity probes having different cell constants are available and offer a large measurement range. The Pt1000 for automatic temperature compensation is integrated in the sensor housing. The sensor transmits directly a raw signal and is fitted with a standard EN 175301-803 plug connector. The sensor has to be connected to the Bürkert transmitter/ controller Type 8619 multiCELL via a 4x1.5 mm2 shielded cable (maximal cable length of 10 m). The conductivity sensor can be installed into a pipe by using INSERTION fitting Type S020 which is available in different materials (details see data sheet Type S020). In its longer version it can also be installed in tanks or containers by using an industrial immersion fitting.

（1）Compact version for DN15 to DN200

（2）Large capabilities of conductivity measurement through different cells

（3）Large range of process connections with various fittings
