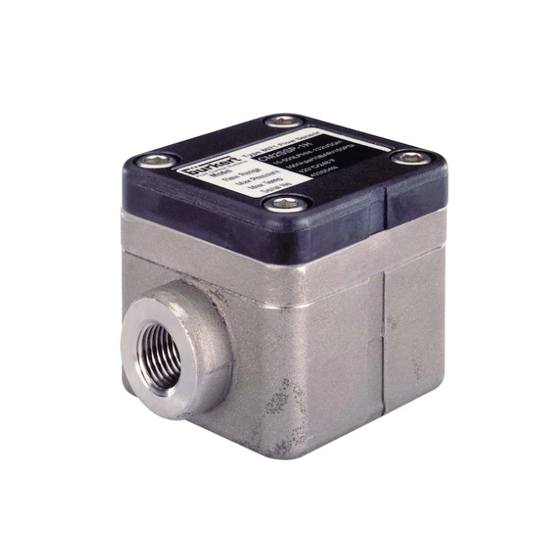

8071型小流量椭圆齿轮流量传感器 burkert

类型描述

该传感器是专门针对像胶水、蜂蜜或油等高粘度液体的测量和批量控制而设计的。可以方便配套8025 和8019传感器并用于多种其他用途。基于椭圆齿轮的测量原理所设计的这款小流量传感器，被证实可靠且精准测量流量。重复性好且适用的流量和粘度范围较广也是这款流量计的设计特点。低压降和高耐压的特点让这款流量计适用于各种场合的应用。所有传感器配置NPN集电极开路频率输出和带簧片触点的频率输出内置一米长5线电缆。

（1）适合高粘度介质

（2）与不同变送器配套使用，可进行数值显示、控制、信号传输、开/关控制和批量控制



Type 8071 - Oval rotor low flow sensor

Type Description

This sensor is specially designed for measurement or batch control of highly viscous fluids like glue, honey or oil. It allows an easy connection to transmitters like types 8025 and 8619 for more functionality. The design of this low flow sensor is based on the oval rotor principle. This has proven to be a reliable and highly accurate volumetric method of measuring flow. Exceptional repeatability and high accuracy over a wide range of viscosities and flowrates are features of this design. The low pressure drop and high pressure rating make it suitable for gravity and pump (in-line) applications and many others. All sensors provide Open Collector NPN frequency output and frequency output on Reed contact via 1-meter 5-wire cable.

（1）For highly viscous fluids

（2）Value indication, monitoring, transmitting, On/Off control and batch control in combination with different transmitters
