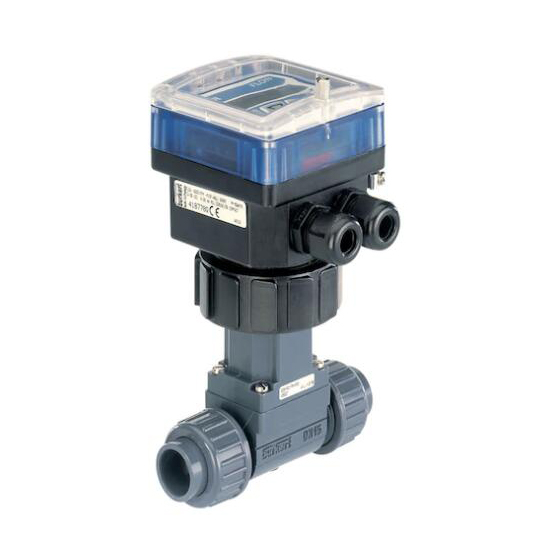

8025型叶轮式流量测量仪/计量仪 burkert

类型描述

计量仪特别适合中性和弱侵蚀性的、不含固体的液体。计量仪具有不同的结构：带有集成叶轮式传感器的紧凑型计量仪，用于与 Bürkert 8020 / 8030 / 8031 / 8041 / 8071 传感器或其他传感器相组合的、适合开关柜或现场安装的分离式计量仪；带有开路集电极输出端、簧片继电器输出端或线圈的传感器，可利用这种计量仪工作。

（1）紧凑型或分离型结构，适合 DN06 至 DN400，PN10

（2）计量

（3）通过 TEACH-IN 自动校准

（4）检查输入端/输出端

（5）显示计量体积和计数值



Type 8025 - INSERTION flowmeter or batch controller with paddle wheel and flow transmitter or remote batch controller

Type Description

The 8025 flowmeter or batch controller is specially designed for measuring the flow rate or for dosing in neutral, slightly aggressive, solid-free liquids. Type 8025 flowmeter is offered in different models: ? The compact flowmeter with paddle wheel sensor is available in two versions: standard output signal or battery powered indicator version without output. ? The remote transmitter is available in two versions: – Universal transmitter for panel or wall-mounted versions, which can be connected to any sensors already on the market; sensors with open collector output,reed relay output, TTL, CMOS or coil can be operated by this transmitter. – Transmitter, for panel or wall mounting: standard input signal for connection to the Bürkert 8020/8030/SE30+S077 flowmeter “Low Power” version. Type 8025 batch controller is also offered in different models: ? The compact batch controller with paddle wheel sensor ? The remote batch controller for panel or wall-mounted versions, which can be connected to the Bürkert 8020/8030/8031/8041/SE30+S077 flowmeter or any sensors already on the market; sensors with open collector output,reed relay output, TTL, CMOS or coil can be operated by this batch controller.

（1）Up to PN10, size of measurement pipes: DN06 to DN400

（2）Display for indication of flow rate and volume with two flow totalizers or dosing

（3）Automatic calibration using Teach-In

（4）Inputs (with batch controller) and all outputs can be checked without the need of actual flow

（5）Total and daily totalized for batch quantity and number of batches, volume or mass totalizers （6）displayed (with batch controller)
