2寸角座阀 黄铜burkert 德国开关阀代理 001134

Description

IDNR                                                        00001134

BSTNEU                                                  2000-A-2-50,0-EE-RG-GM89-B-G

BSTALT                                                   C-2000-A-050,0-E-RGGM89-B*G*00-2-000

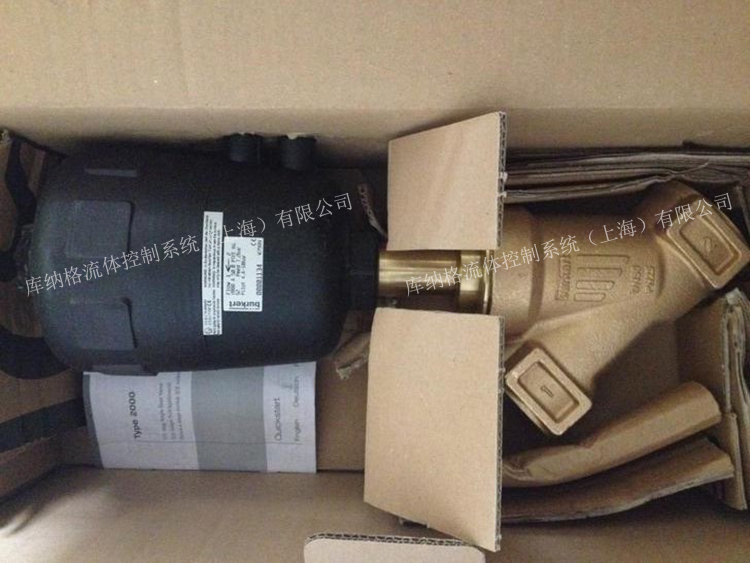

BEZ                                                         2/2-way-piston-operated angle-seat valve

Type (TYP)                                               2000 - 2000

Control function (SF)                                A - closed by spring force

Paths/positions (WS)                                2 - 2 ways / 2 position

Orifice size (DN)                                       50,0 - 50mm (2")

Seal material (DWST)                                EE - PTFE

Body material (WKST)                               RG - gunmetal

Port connection (LTA)                               GM89 - G2 threaded port

Actuator version (ANTA)                            B - PA-actuator, MS-threaded bus hing at

connection of pilot air

Actuator size (ANTG)                                G - Dm 100mm

SUBSTID

CE_KZ                                                     CEEX

LIEFZ                                                       7

Technical Data

PRESS. MAX. (BAR) (DRMAXBAR)                                                      7.2

PRESS MAX. (PSI) (DRMAXPSI)                                                          104

PRESS. MIN. (BAR) (DRMINBAR)                                                         0

PRESS. MIN (PSI) (DRMINPSI)                                                             0

REQUIRED PILOT PRESS.F.MAX.FLUID PRESS.(BAR) (STDRERFBAR)

REQUIRED PILOT PRESS.F.MAX.FLUID PRESS.(PSI) (STDRERFPSI)

PILOT PRESS. MAX (BAR) (STDRMAXBAR)                                         10

PILOT PRESS MAX. (PSI) (STDRMAXPSI)                                            145

PILOT PRESS. MIN. (BAR) (STDRMINBAR)                                           4.4

PILOT PRESS. MIN. (PSI) (STDRMINPSI)                                              63

KV-VALUE (M*3/H) (KV)                                                                       55.0

QNN-VALUE (L/MIN) (QNN)

WEIGHT (KG) (MASSE)                                                                        7.00

FLUID TEMP. MAX. (DEGREE C) (MEDTEMPMAX)                              +180

FLUID TEMP. MIN. (DEGREE C) (MEDTEMPMIN)                                 -10

AMB. TEMP. MAX. (DEGREE C) (UMGTEMPMAX)                               +60

AMB. TEMP. MIN. (DEGREE C) (UMGTEMPMIN)                                  -10

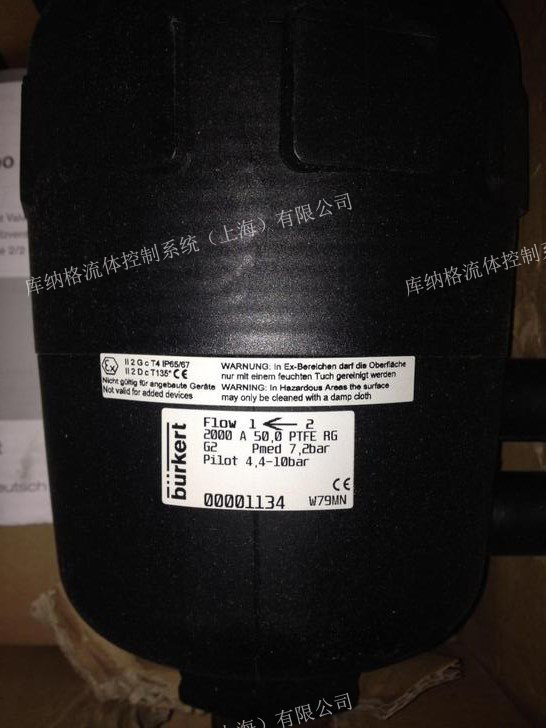

ID: 00001134                2000-A-2-50,0-EE-RG-GM89-B-G

1            00208657      1               Actuator for angle-seat valve 2/2-way        19930624      2000BG03

2            00673912      1               Housing DN50 RG G2                                                   19930624             2000-F1-00673912

3            00631089      1               Seal DN50                                                                    19930624             2000-F1-00631084

4            00900625      2               Plug for G1/4                                                               19930624             0006-8047

5            00637226      1               Label  38,1 x 19,05                                                      19930624             0480-0233-000-00

6            00671761      1               KLEBESCH. EX II 2G/D T4/ =135 CE 65x9                     19930624             2100-F1-00671761

100        00810013      1               BETRIEBSANLEITUNG 2000 A5 QS                               19930624             00462-2111-92002
