1132 角座阀 001132宝德代理 开关阀 黄铜 不锈钢

Description

IDNR                                                        00001132

BSTNEU                                                  2000-A-2-32,0-EE-RG-GM87-B-F

BSTALT                                                   C-2000-A-032,0-E-RGGM87-B*F*00-2-000

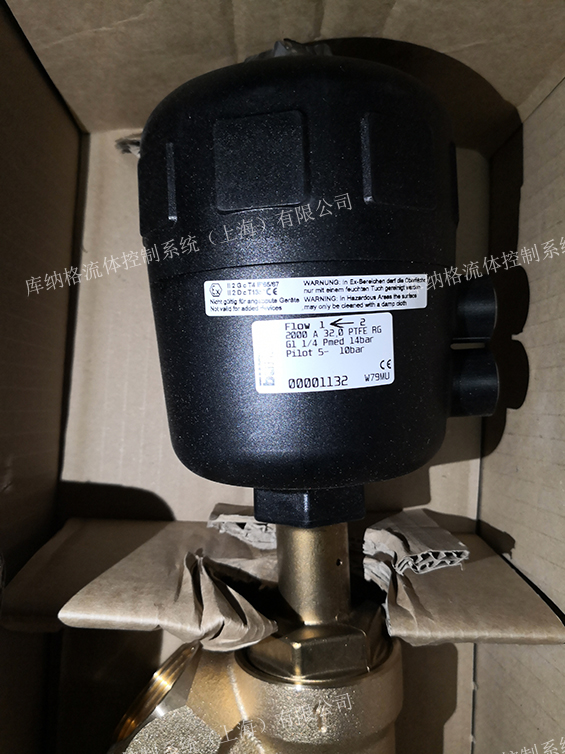

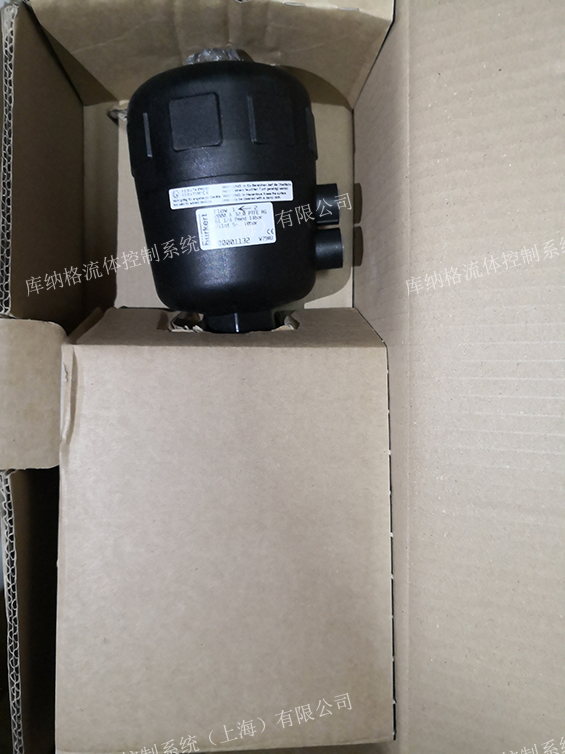

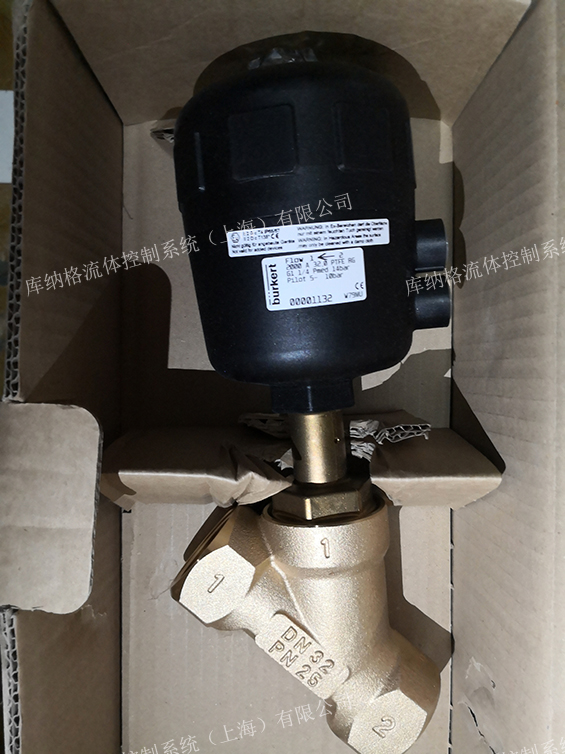

BEZ                                                         2/2-way-piston-operated angle-seat valve

Type (TYP)                                               2000 - 2000

Control function (SF)                                A - closed by spring force

Paths/positions (WS)                                2 - 2 ways / 2 position

Orifice size (DN)                                       32,0 - 32mm (1 1/4")

Seal material (DWST)                                EE - PTFE

Body material (WKST)                               RG - gunmetal

Port connection (LTA)                               GM87 - G1 1/4 threaded port

Actuator version (ANTA)                            B - PA-actuator, MS-threaded bus hing at

connection of pilot air

Actuator size (ANTG)                                F - Dm  80mm

SUBSTID                                                 00178699

CE_KZ                                                     CEEX

LIEFZ                                                       28

Technical Data

PRESS. MAX. (BAR) (DRMAXBAR)                                                      14

PRESS MAX. (PSI) (DRMAXPSI)                                                          203

PRESS. MIN. (BAR) (DRMINBAR)                                                         0

PRESS. MIN (PSI) (DRMINPSI)                                                             0

REQUIRED PILOT PRESS.F.MAX.FLUID PRESS.(BAR) (STDRERFBAR)

REQUIRED PILOT PRESS.F.MAX.FLUID PRESS.(PSI) (STDRERFPSI)

PILOT PRESS. MAX (BAR) (STDRMAXBAR)                                         10

PILOT PRESS MAX. (PSI) (STDRMAXPSI)                                            145

PILOT PRESS. MIN. (BAR) (STDRMINBAR)                                           5

PILOT PRESS. MIN. (PSI) (STDRMINPSI)                                              72

KV-VALUE (M*3/H) (KV)                                                                       28.0

QNN-VALUE (L/MIN) (QNN)

WEIGHT (KG) (MASSE)                                                                        3.10

FLUID TEMP. MAX. (DEGREE C) (MEDTEMPMAX)                              +180

FLUID TEMP. MIN. (DEGREE C) (MEDTEMPMIN)                                 -10

AMB. TEMP. MAX. (DEGREE C) (UMGTEMPMAX)                               +60

AMB. TEMP. MIN. (DEGREE C) (UMGTEMPMIN)                                  -10

ID: 00001132                2000-A-2-32,0-EE-RG-GM87-B-F

10          00245365      1               Actuator for angle-seat valve 2/2-way        20120424      2000BG01

20          00647546      1               Body DN 32 G11/4 CUSN                                             20120424             2000-F1-00647546

30          00631087      1               Seal DN32                                                                    20120424             2000-F1-00631084

40          00900625      2               Plug for G1/4                                                               20120424             0006-8047

50          00637226      1               Label  38,1 x 19,05                                                      20120424             0480-0233-000-00

60          00671761      1               KLEBESCH. EX II 2G/D T4/ =135 CE 65x9                     20120424             2100-F1-00671761
