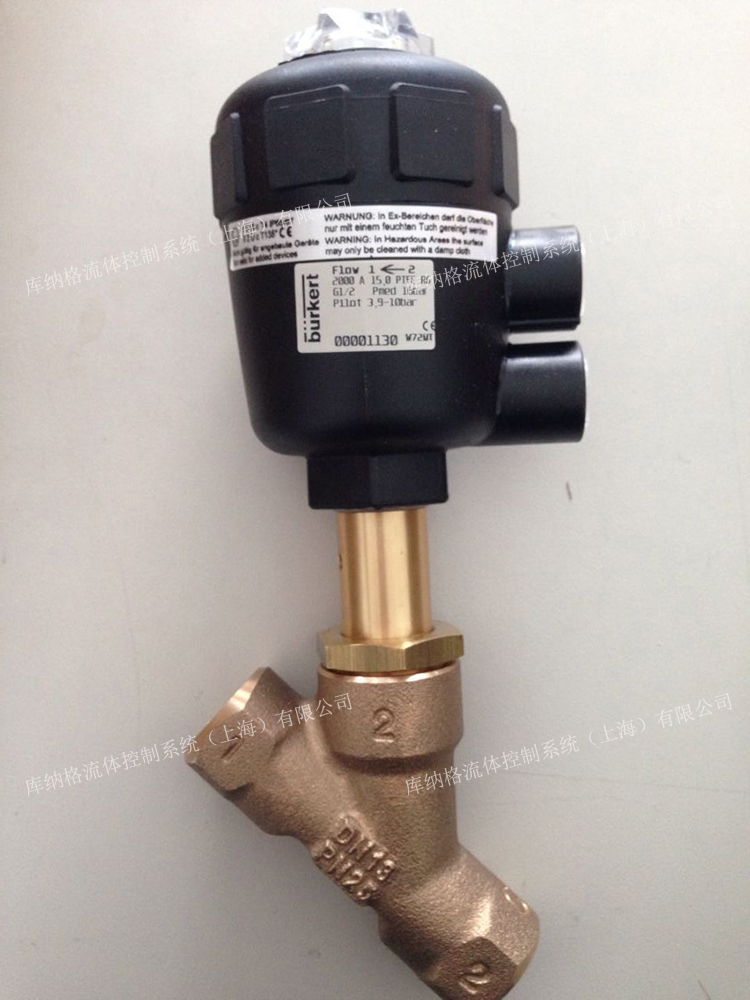

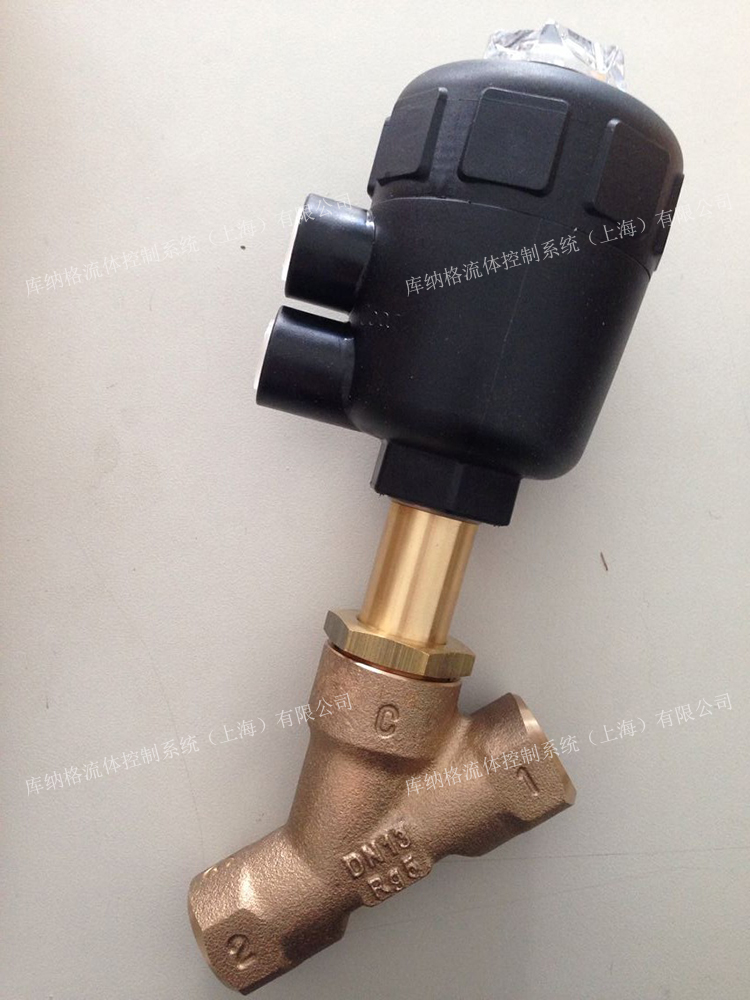

1130 角座阀 001130 德国宝德 burkert代理

Description

IDNR                                                        00001130

BSTNEU                                                  2000-A-2-15,0-EE-RG-GM84-B-D       *  MS74

BSTALT                                                   C-2000-A-013,0-E-RGGM84-B*D*00-2-000

BEZ                                                         2/2-way-piston-operated angle-seat valve

Type (TYP)                                               2000 - 2000

Control function (SF)                                A - closed by spring force

Paths/positions (WS)                                2 - 2 ways / 2 position

Orifice size (DN)                                       13,0 - 13mm (1/2")

Seal material (DWST)                                EE - PTFE

Body material (WKST)                               RG - gunmetal

Port connection (LTA)                               GM84 - G1/2 threaded port

Actuator version (ANTA)                            B - PA-actuator, MS-threaded bus hing at

connection of pilot air

Actuator size (ANTG)                                D - Dm  50mm

SUBSTID                                                 00178684

CE_KZ                                                     CEEX

LIEFZ                                                       28

Technical Data

PRESS. MAX. (BAR) (DRMAXBAR)                                                      16

PRESS MAX. (PSI) (DRMAXPSI)                                                          232

PRESS. MIN. (BAR) (DRMINBAR)                                                         0

PRESS. MIN (PSI) (DRMINPSI)                                                             0

REQUIRED PILOT PRESS.F.MAX.FLUID PRESS.(BAR) (STDRERFBAR)

REQUIRED PILOT PRESS.F.MAX.FLUID PRESS.(PSI) (STDRERFPSI)

PILOT PRESS. MAX (BAR) (STDRMAXBAR)                                         10

PILOT PRESS MAX. (PSI) (STDRMAXPSI)                                            145

PILOT PRESS. MIN. (BAR) (STDRMINBAR)                                           3.9

PILOT PRESS. MIN. (PSI) (STDRMINPSI)                                              56

KV-VALUE (M*3/H) (KV)                                                                       4.2

QNN-VALUE (L/MIN) (QNN)

WEIGHT (KG) (MASSE)                                                                        0.80

FLUID TEMP. MAX. (DEGREE C) (MEDTEMPMAX)                              +180

FLUID TEMP. MIN. (DEGREE C) (MEDTEMPMIN)                                 -10

AMB. TEMP. MAX. (DEGREE C) (UMGTEMPMAX)                               +40

AMB. TEMP. MIN. (DEGREE C) (UMGTEMPMIN)                                  -10

ID: 00001130                2000-A-2-15,0-EE-RG-GM84-B-D       *  MS74

10          00179152      1               Actuator for angle-seat valve 2/2-way        19920910      2000BG01

20          00647456      1               Housing DN 15 G1/2 CUSN long                                   19920910             2000-F1-00647456

30          00631084      1               Seal DN15                                                                    19920910             2000-F1-00631084

40          00900625      2               Plug for G1/4                                                               19920910             0006-8047

50          00637227      1               Label 27 x 16,5                                                             19920910             0300-0237-000-00

60          00671761      1               KLEBESCH. EX II 2G/D T4/ =135 CE 65x9                     19920910             2100-F1-00671761

100        00810013      1               BETRIEBSANLEITUNG 2000 A5 QS                               19920910             00462-2111-92002
