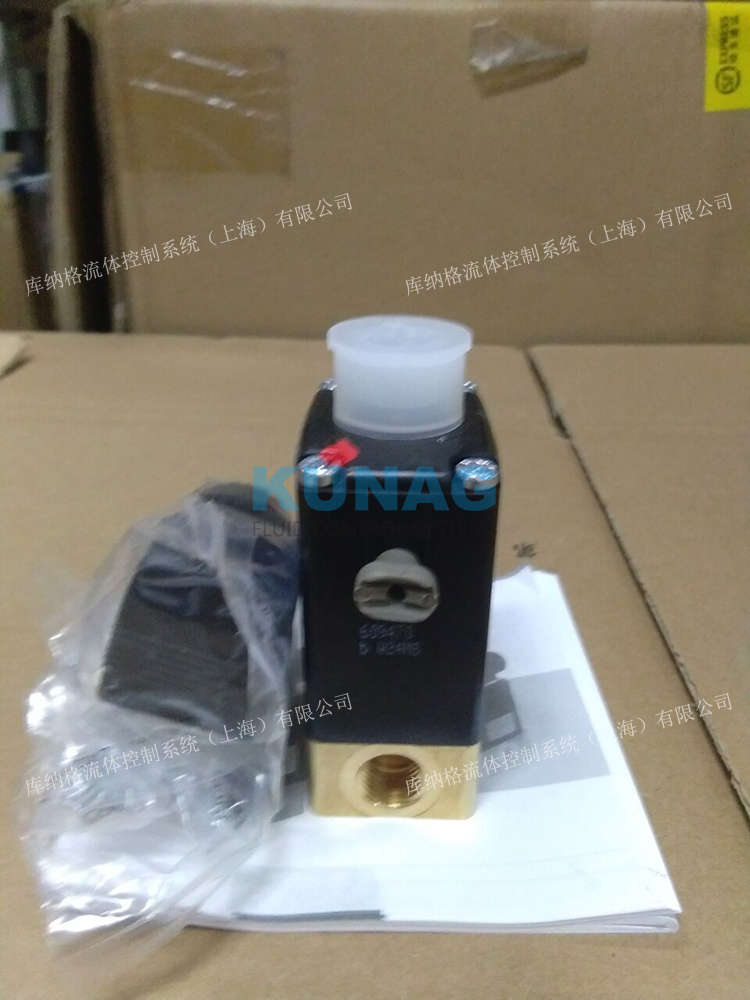

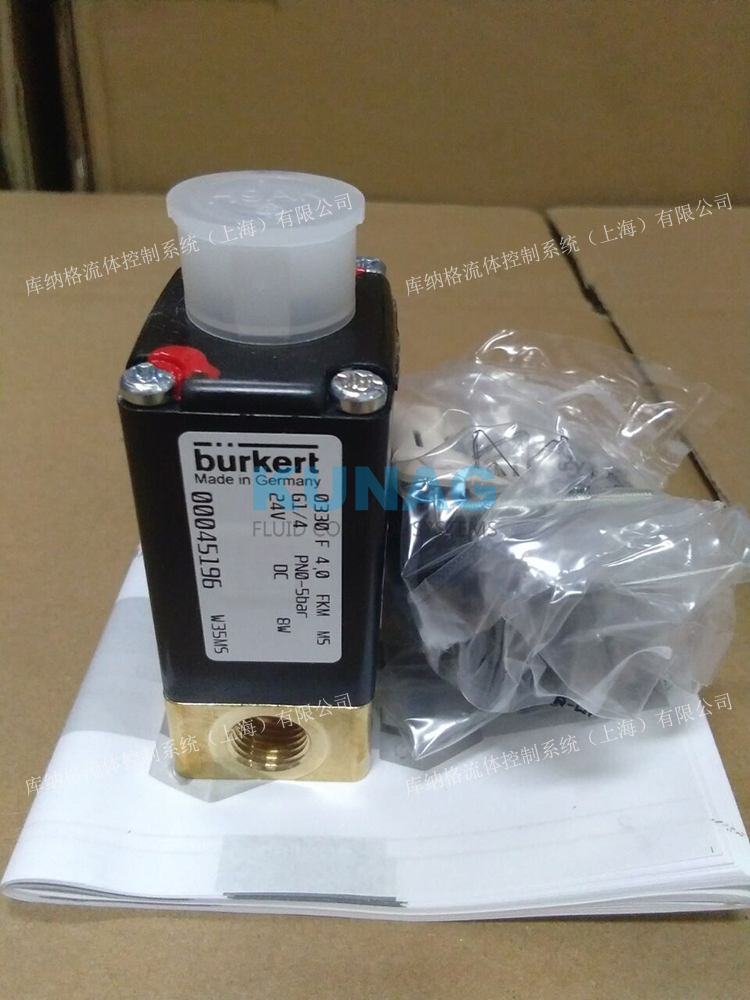

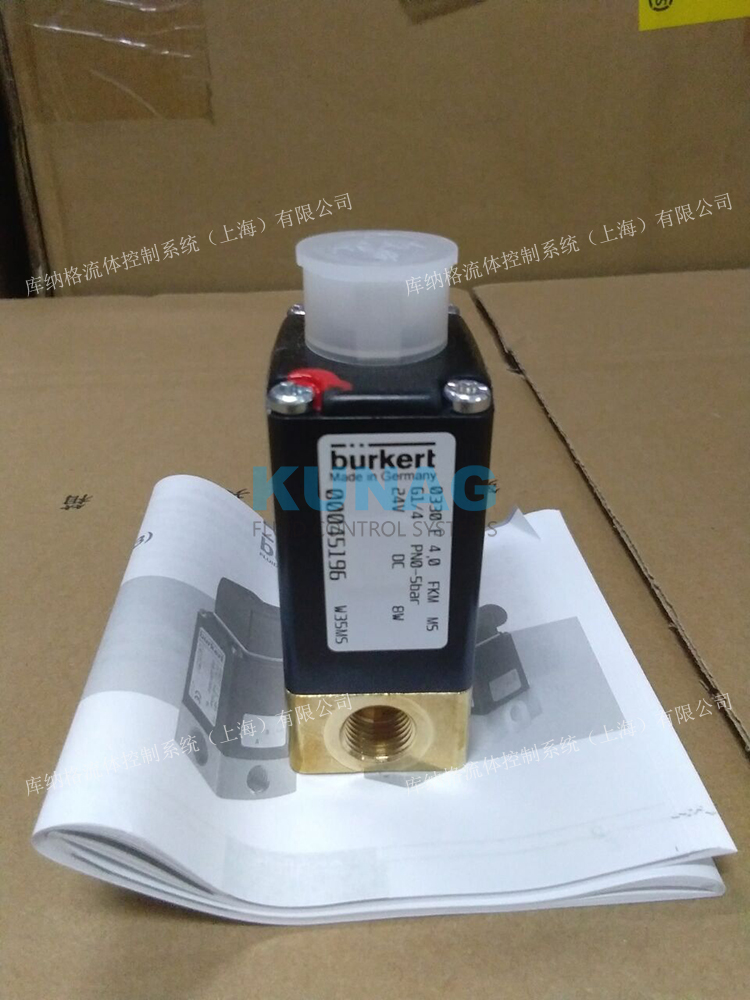

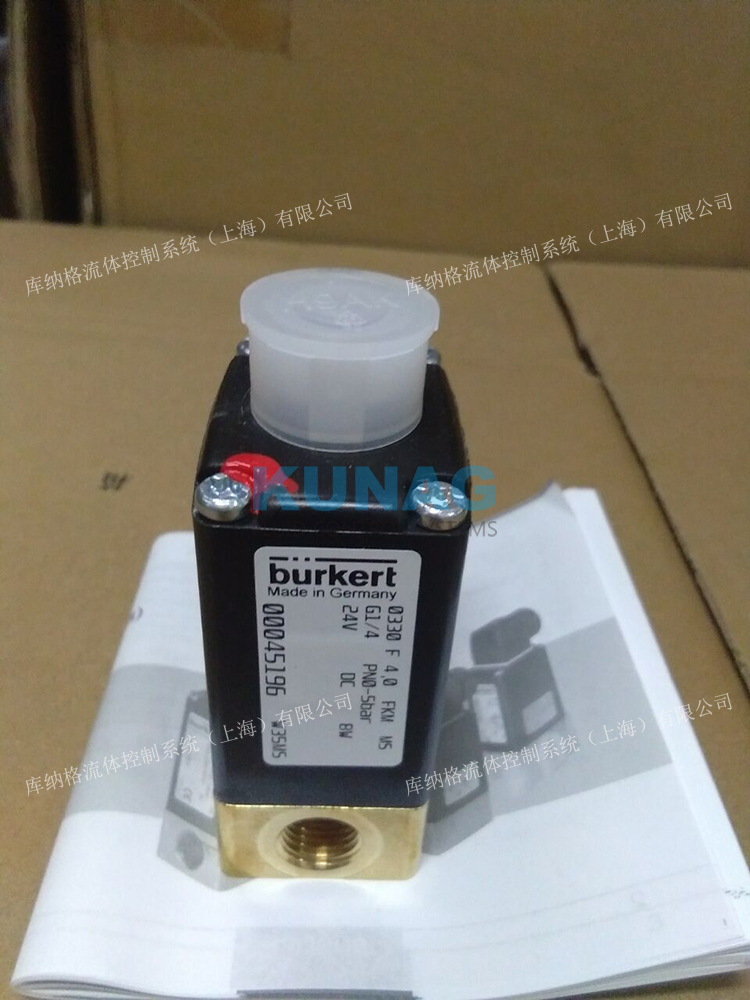

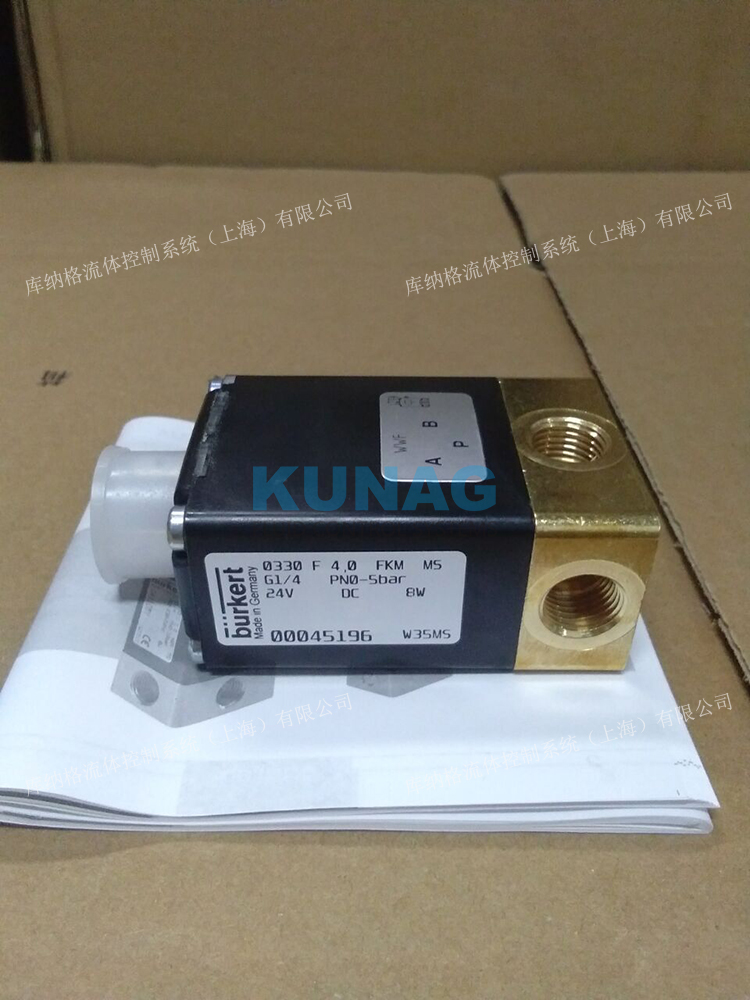

| Type |
0330 |
|
| Operation |
direct-acting |
|
| Actuator type |
Pivot |
|
| Main valve operating principle |
Globe valve |
|
| Switch function |
on/off |
|
| Media separation |
Yes |
|
| Valve function |
F - distributing valve - normally inlet port 1 (P/IN) connected with outlet port 2 (B/NO), outlet port 4 (A/NC) closed |
|
| Fluidic port connection number |
3 |
|
| Valve function number of switching positions |
2 |
|
| Valve function manual actuation |
Yes |
|
| Valve function manual actuation type |
Key button |
|
| Valve function manual actuation material |
PA (Polyamide) |
|
| Valve function manual actuation stop |
Yes |
|
| Flow |
Above seat |
|
| Nominal pressure min |
0 |
bar |
| Nominal pressure max (liquid) |
5 |
bar |
| Main valve orifice 1 (P) (mm) |
4 |
mm |
| Main valve orifice 1 (inch) |
5/32 inch |
|
| Main valve orifice 3 (R) (mm) |
4 |
mm |
| Kv value (water) |
0,17 |
m3/h |
| QNn value (gas) |
180 |
l/min |
| Main valve wetted material |
Brass |
|
| Port connection 1 type |
Inner thread |
|
| Port connection 1 thread type |
G |
|
| Port connection 1 thread marking |
1/4 |
|
| Port connection 2 type |
Inner thread |
|
| Port connection 2 thread type |
G |
|
| Port connection 2 thread marking |
1/4 |
|
| Port connection 3 type |
Inner thread |
|
| Port connection 3 thread type |
G |
|
| Port connection 3 thread marking |
1/4 |
|
| Valve seat material |
Brass |
|
| Seat seal material category |
Elastomer |
|
| Seat seal material |
FKM (Fluor rubber) |
|
| Seat seal material Shore hardness |
70 |
|
| Sealing toward outside material |
FKM (Fluor rubber) |
|
| Temperature environment max |
55 |
°C |
| Temperature medium min |
0 |
°C |
| Temperature medium max |
90 |
°C |
| Temperature surface max |
155 |
°C |
| Voltage / rated voltage |
24 |
V |
| Voltage / rated voltage |
24 |
V |
| Voltage tolerance negative |
10 |
% |
| Voltage tolerance positive |
10 |
% |
| AC voltage |
No |
|
| DC voltage |
Yes |
|
| Battery voltage |
Yes |
|
| Rated power DC |
11 |
W |
| Reduced power DC |
11 |
W |
| Rated power consumption |
8 |
W |
| Electrical connection sort |
Plug pattern form A according to DIN EN 175301-803 |
|
| Electrical connection number of contacts |
2 + Grounding conductor |
|
| Cable plug in delivery |
enclosed |
|
| Cable plug art. no. - type |
00008376 - 2508 |
|
| Electrical connection position |
top |
|
| Electrical connection polarity |
Irrelevant |
|
| Electrical connection material |
Brass |
|
| Protection type (IP max. with suitable connector) |
IP65 |
|
| Coil type |
block bolted |
|
| Coil insulation material (encasement) |
Epoxy |
|
| Coil wiring overvoltage protection |
without |
|
| Coil wiring rectifier |
No |
|
| Coil wiring polarity protection |
No |
|
| Coil wiring polarity recovery diode |
No |
|
| Thermal insulation class of the actuator |
H |
|
| Nominal operation/Duty cycle |
100 |
% |
| Switch time open min |
10 |
ms |
| Switch time open max. |
20 |
ms |
| Switch time close min |
10 |
ms |
| Switch time close max. |
20 |
ms |
| Valve setting opening time |
No |
|
| Valve setting closing time |
No |
|
| Back-pressure-resistant version |
No |
|
| Vacuum version |
No |
|
| Analysis version |
No |
|
| Oil burner valve |
No |
|
| Steam version |
No |
|
| Low-noise version |
No |
|
| Main valve with integrated screen |
No |
|
| Installation length |
46 |
mm |
| Mounting type |
Metric screws |
|
| Valve construction |
Valve complete |
|
| 重量 |
0,46 |
kg |
