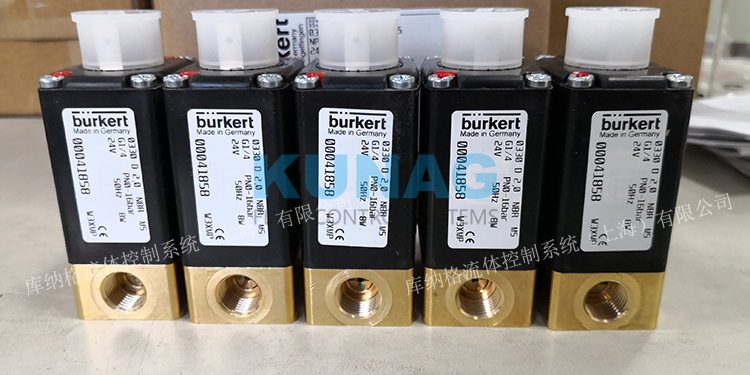

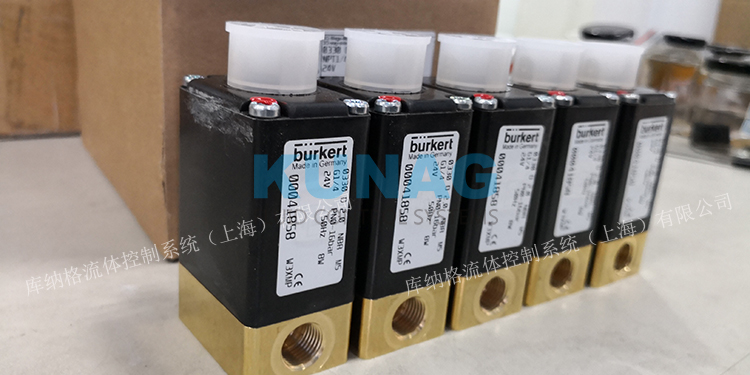

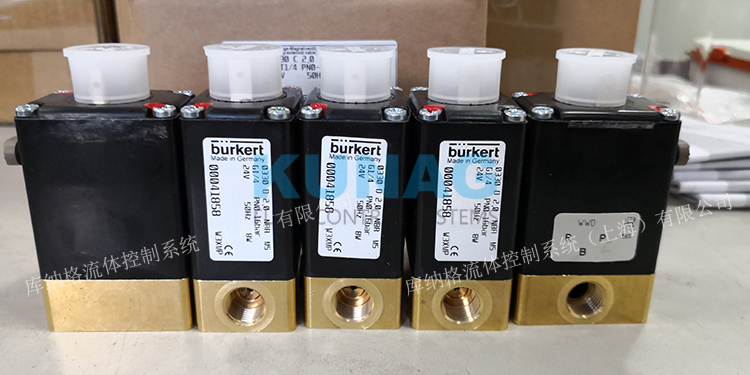

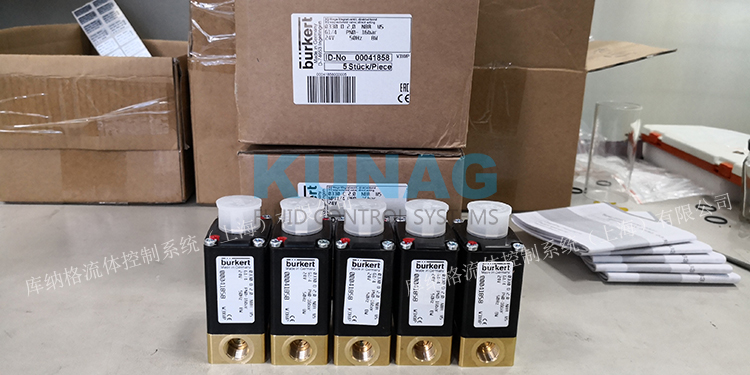

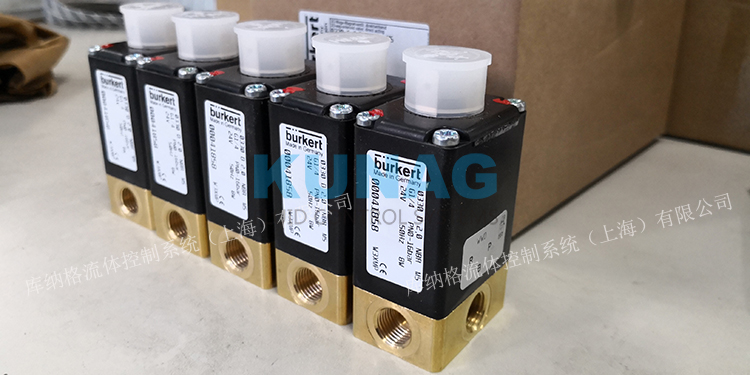

Operation direct-acting
Actuator type Pivot
Main valve operating principle Globe valve
Switch function on/off
Media separation Yes
Valve function D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed
Fluidic port connection number 3
Valve function number of switching positions 2

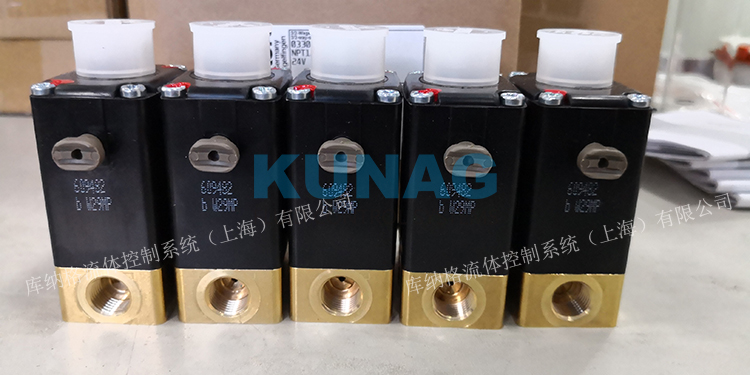

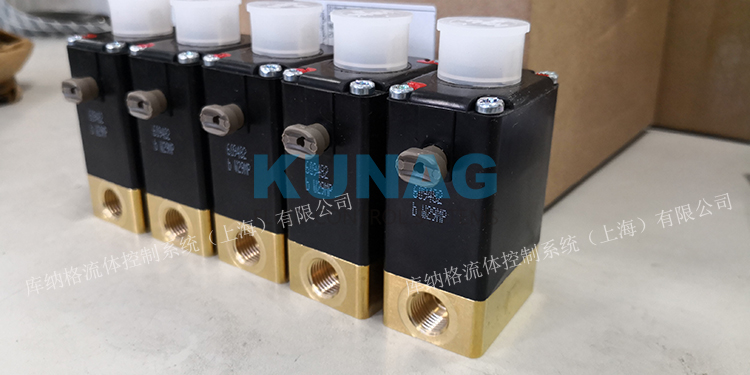

Valve function manual actuation Yes
Valve function manual actuation type Key button
Valve function manual actuation material PA (Polyamide)
Valve function manual actuation stop Yes
Flow Below seat
Nominal pressure min 0 bar
Nominal pressure max (liquid) 16 bar
Main valve orifice 1 (P) (mm) 2 mm
Main valve orifice 1 (inch) 5/64 inch
Main valve orifice 3 (R) (mm) 2 mm
Kv value (water) 0,11 m3/h
QNn value (gas) 120 l/min
Main valve wetted material Brass
Port connection 1 type Inner thread
Port connection 1 thread type G
Port connection 1 thread marking 1/4
Port connection 2 type Inner thread
Port connection 2 thread type G
Port connection 2 thread marking 1/4
Port connection 3 type Inner thread
Port connection 3 thread type G
Port connection 3 thread marking 1/4
Valve seat material Brass
Seat seal material category Elastomer
Seat seal material NBR (Nitrile rubber)
Seat seal material Shore hardness 70
Sealing toward outside material NBR (Nitrile rubber)
Temperature environment max 55 °C
Temperature medium min 0 °C
Temperature medium max 80 °C
Temperature surface max 150 °C
Voltage / rated voltage 24 V
Voltage / rated voltage 24 V
Voltage tolerance negative 10 %
Voltage tolerance positive 10 %
Voltage frequency 50 Hz
AC voltage Yes
DC voltage No
Battery voltage No
Rated power consumption 8 W
inrush power consumption AC 30 V·A
Rated power AC 15 V·A
Electrical connection sort Plug pattern form A according to DIN EN 175301-803
Electrical connection number of contacts 2 + Grounding conductor

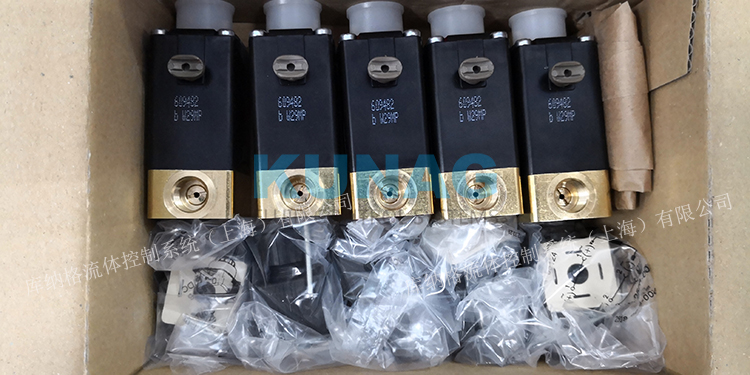

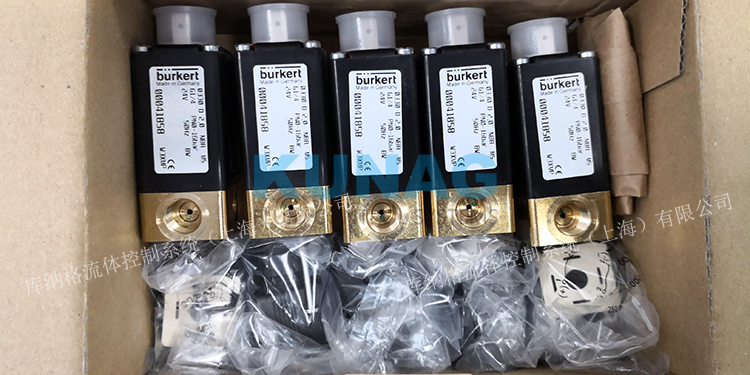

Cable plug in delivery enclosed
Cable plug art. no. - type 00008376 - 2508
Electrical connection position top
Electrical connection polarity Irrelevant
Electrical connection material Brass
Protection type (IP max. with suitable connector) IP65
Coil type block bolted
Coil insulation material (encasement) Epoxy
Coil wiring overvoltage protection without
Coil wiring rectifier No
Coil wiring polarity protection No
Coil wiring polarity recovery diode No
Thermal insulation class of the actuator H
Nominal operation/Duty cycle 100 %
Switch time open min 8 ms
Switch time open max. 15 ms
Switch time close min 8 ms
Switch time close max. 15 ms
Valve setting opening time No
Valve setting closing time No
Back-pressure-resistant version No
Vacuum version No
Analysis version No
Oil burner valve No
Steam version No
Low-noise version No
Main valve with integrated screen No
Installation length 46 mm
Mounting type Metric screws
Valve construction Valve complete
