BSTNEU 2000-A-2-15,0-EE-VA-GM84-C-D * MS74
BSTALT C-2000-A-013,0-E-VAGM84-C*D*00-2-000

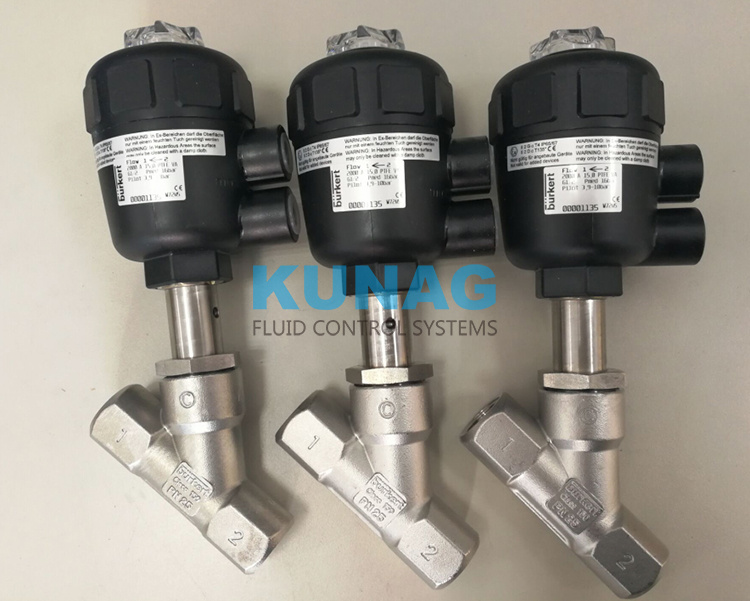

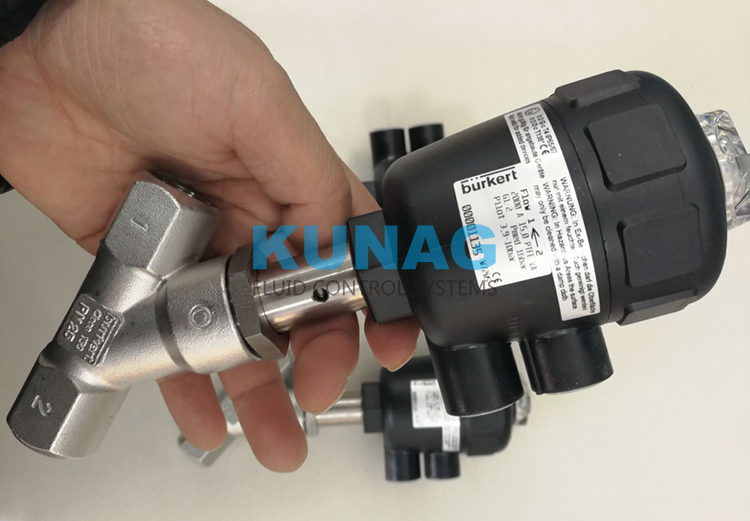

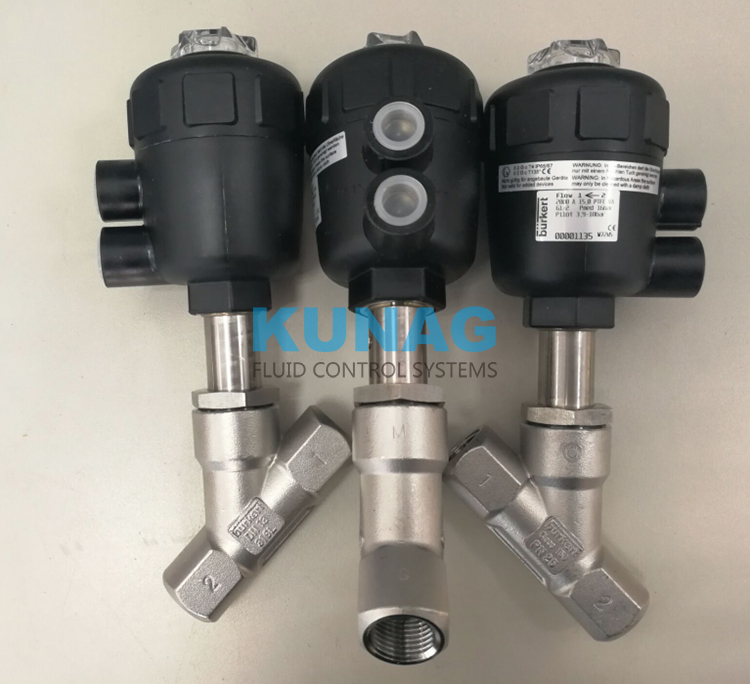

BEZ 2/2-way-piston-operated angle-seat valve
Type (TYP) 2000 - 2000
Control function (SF) A - closed by spring force
Paths/positions (WS) 2 - 2 ways / 2 position
Orifice size (DN) 13,0 - 13mm (1/2")
Seal material (DWST) EE - PTFE
Body material (WKST) VA - stainless steel
Port connection (LTA) GM84 - G1/2 threaded port
Actuator version (ANTA) C - PA-actuator, VA-threaded bus hing at
connection of pilot air
Actuator size (ANTG) D - Dm 50mm
SUBSTID 00178682
CE_KZ CEEX
LIEFZ 28
PRESS. MAX. (BAR) (DRMAXBAR) 16
PRESS MAX. (PSI) (DRMAXPSI) 232
PRESS. MIN. (BAR) (DRMINBAR) 0
PRESS. MIN (PSI) (DRMINPSI) 0
REQUIRED PILOT PRESS.F.MAX.FLUID PRESS.(BAR) (STDRERFBAR)
REQUIRED PILOT PRESS.F.MAX.FLUID PRESS.(PSI) (STDRERFPSI)
PILOT PRESS. MAX (BAR) (STDRMAXBAR) 10
PILOT PRESS MAX. (PSI) (STDRMAXPSI) 145
PILOT PRESS. MIN. (BAR) (STDRMINBAR) 3.9
PILOT PRESS. MIN. (PSI) (STDRMINPSI) 56
KV-VALUE (M*3/H) (KV) 4.2
QNN-VALUE (L/MIN) (QNN)
WEIGHT (KG) (MASSE) 0.80
FLUID TEMP. MAX. (DEGREE C) (MEDTEMPMAX) +180
FLUID TEMP. MIN. (DEGREE C) (MEDTEMPMIN) -10
AMB. TEMP. MAX. (DEGREE C) (UMGTEMPMAX) +40
AMB. TEMP. MIN. (DEGREE C) (UMGTEMPMIN) -10
ID: 00001135 2000-A-2-15,0-EE-VA-GM84-C-D * MS74
10 00179148 1 Actuator for angle-seat valve 2/2-way 19921109 2000BG01
20 00647481 1 Housing DN 15 G 1/2 VA 19921109 2000-F1-00647481
30 00631084 1 Seal DN15 19921109 2000-F1-00631084
40 00900625 2 Plug for G1/4 19921109 0006-8047
50 00637227 1 Label 27 x 16,5 19921109 0300-0237-000-00
60 00671761 1 KLEBESCH. EX II 2G/D T4/ =135 CE 65x9 19921109 2100-F1-00671761
100 00810013 1 BETRIEBSANLEITUNG 2000 A5 QS 19921109 00462-2111-92002
