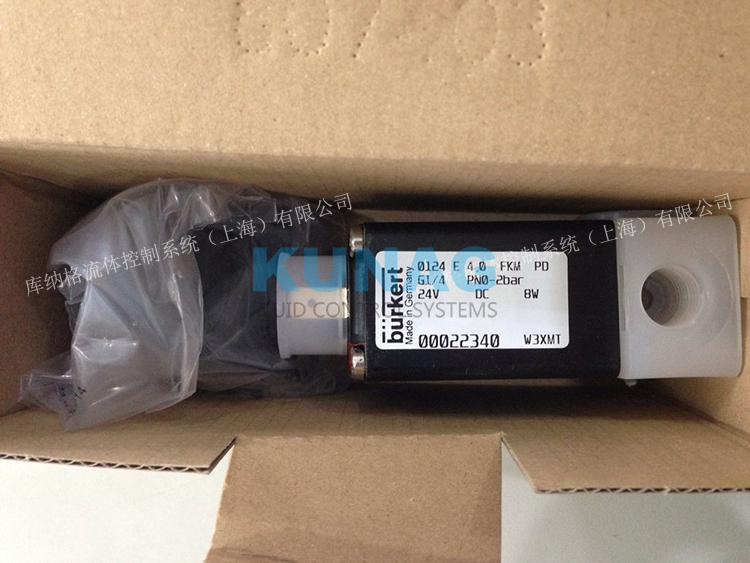

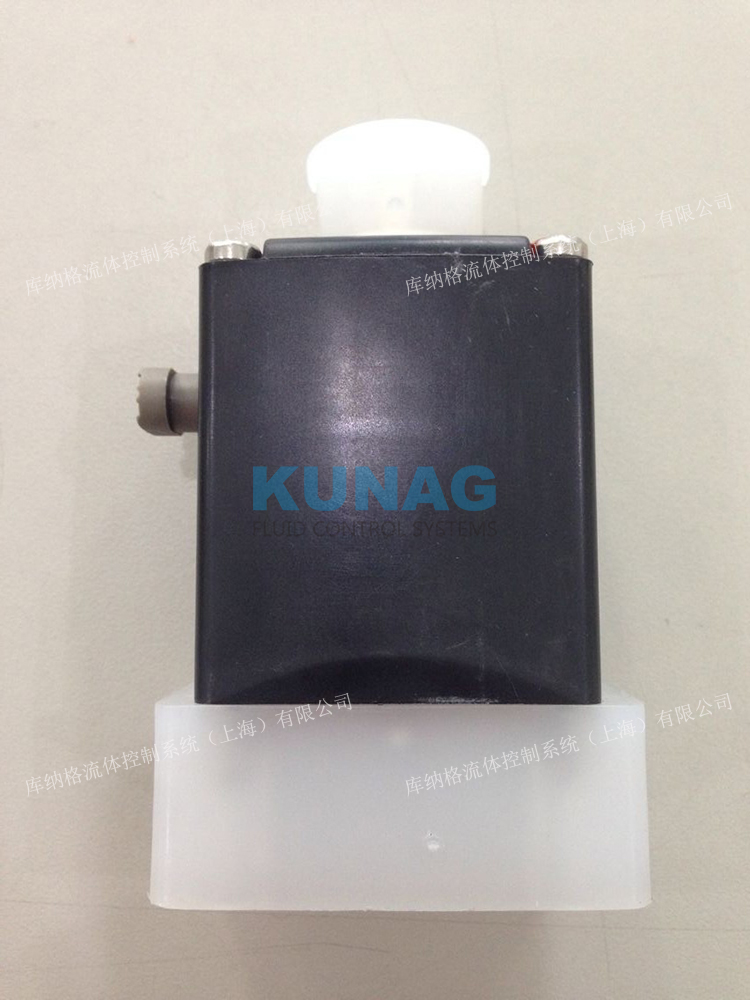

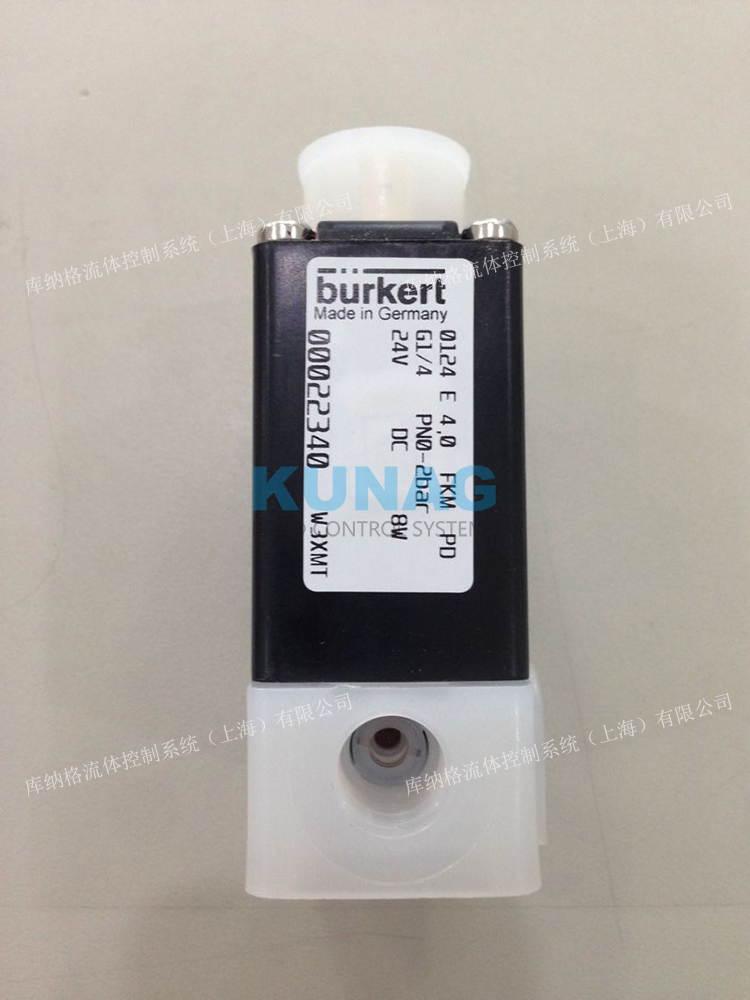

Type 0330
Operation direct-acting
Actuator type Pivot
Main valve operating principle Globe valve
Switch function on/off
Media separation Yes

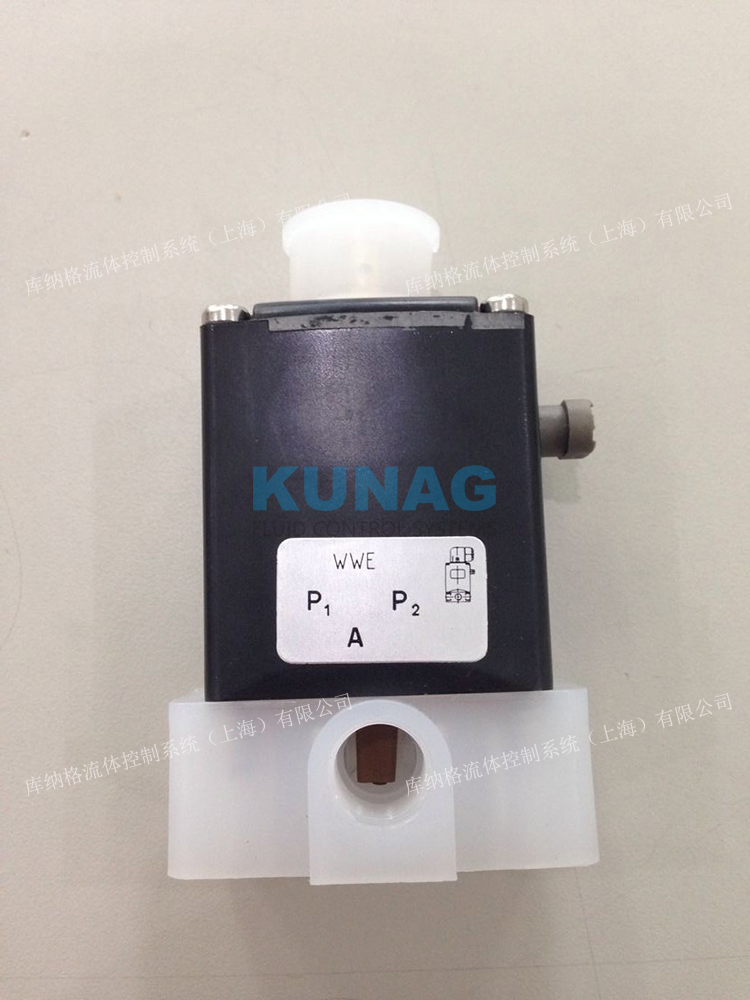

Valve function E - mixing valve - normally inlet port 1 (P1/NC) closed, inlet port 3 (P2/NO) connected with outlet port 2 (A/OUT)
Fluidic port connection number 3
Valve function number of switching positions 2

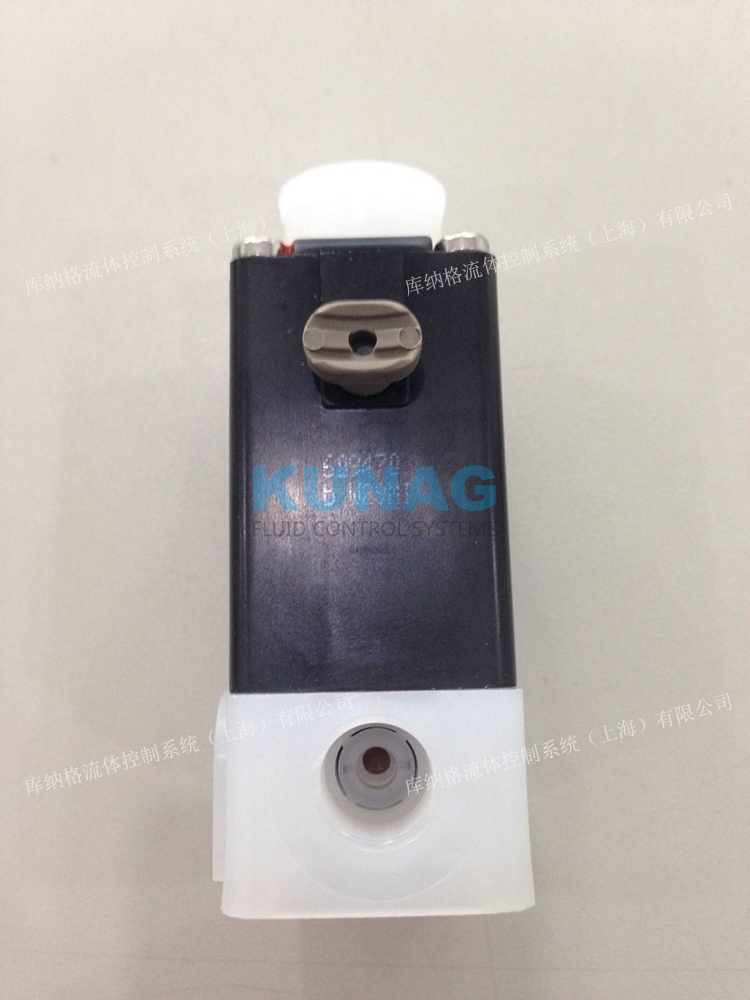

Valve function manual actuation Yes
Valve function manual actuation type Key button
Valve function manual actuation material PA (Polyamide)
Valve function manual actuation stop Yes
Flow Below seat
Nominal pressure min 0 bar
Nominal pressure max (liquid) 2 bar
Main valve orifice 1 (P) (mm) 4 mm
Main valve orifice 1 (inch) 5/32 inch
Main valve orifice 3 (R) (mm) 4 mm
Kv value (water) 0,3 m3/h
QNn value (gas) 325 l/min
Main valve wetted material PVDF (Polyvinylidene fluoride)

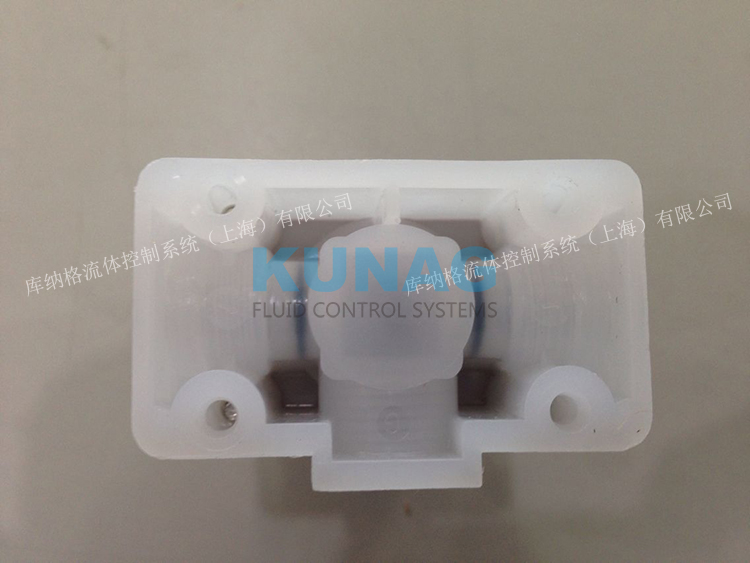

Port connection 1 type Inner thread
Port connection 1 thread type G
Port connection 1 thread marking 1/4
Port connection 2 type Inner thread
Port connection 2 thread type G
Port connection 2 thread marking 1/4
Port connection 3 type Inner thread
Port connection 3 thread type G
Port connection 3 thread marking 1/4
Valve seat material PVDF (Polyvinylidene fluoride)
Seat seal material category Elastomer
Seat seal material FKM (Fluor rubber)
Seat seal material Shore hardness 70
Sealing toward outside material FKM (Fluor rubber)
Temperature environment max 55 °C
Temperature medium min 0 °C
Temperature medium max 80 °C
Temperature surface max 155 °C
Voltage / rated voltage 24 V
Voltage / rated voltage 24 V
Voltage tolerance negative 10 %
Voltage tolerance positive 10 %
AC voltage No
DC voltage Yes
Battery voltage Yes
Rated power DC 11 W
Reduced power DC 11 W
Rated power consumption 8 W
Electrical connection sort Plug pattern form A according to DIN EN 175301-803
Electrical connection number of contacts 2 + Grounding conductor
Cable plug in delivery enclosed
Cable plug art. no. - type 00314802 - 2518
Electrical connection position top
Electrical connection polarity Irrelevant
Electrical connection material Brass
Protection type (IP max. with suitable connector) IP65
Coil type block bolted
Coil insulation material (encasement) Epoxy
Coil wiring overvoltage protection without
Coil wiring rectifier No
Coil wiring polarity protection No
Coil wiring polarity recovery diode No
Thermal insulation class of the actuator H
Nominal operation/Duty cycle 40 %
Switch time open min 10 ms
Switch time open max. 20 ms
Switch time close min 10 ms
Switch time close max. 20 ms
Valve setting opening time No
Valve setting closing time No
Back-pressure-resistant version No
Vacuum version No
Analysis version No
Oil burner valve No
Steam version No
Low-noise version No
Main valve with integrated screen No
Installation length 56 mm
Mounting type Plastic-cutting screws
Valve construction Valve complete
